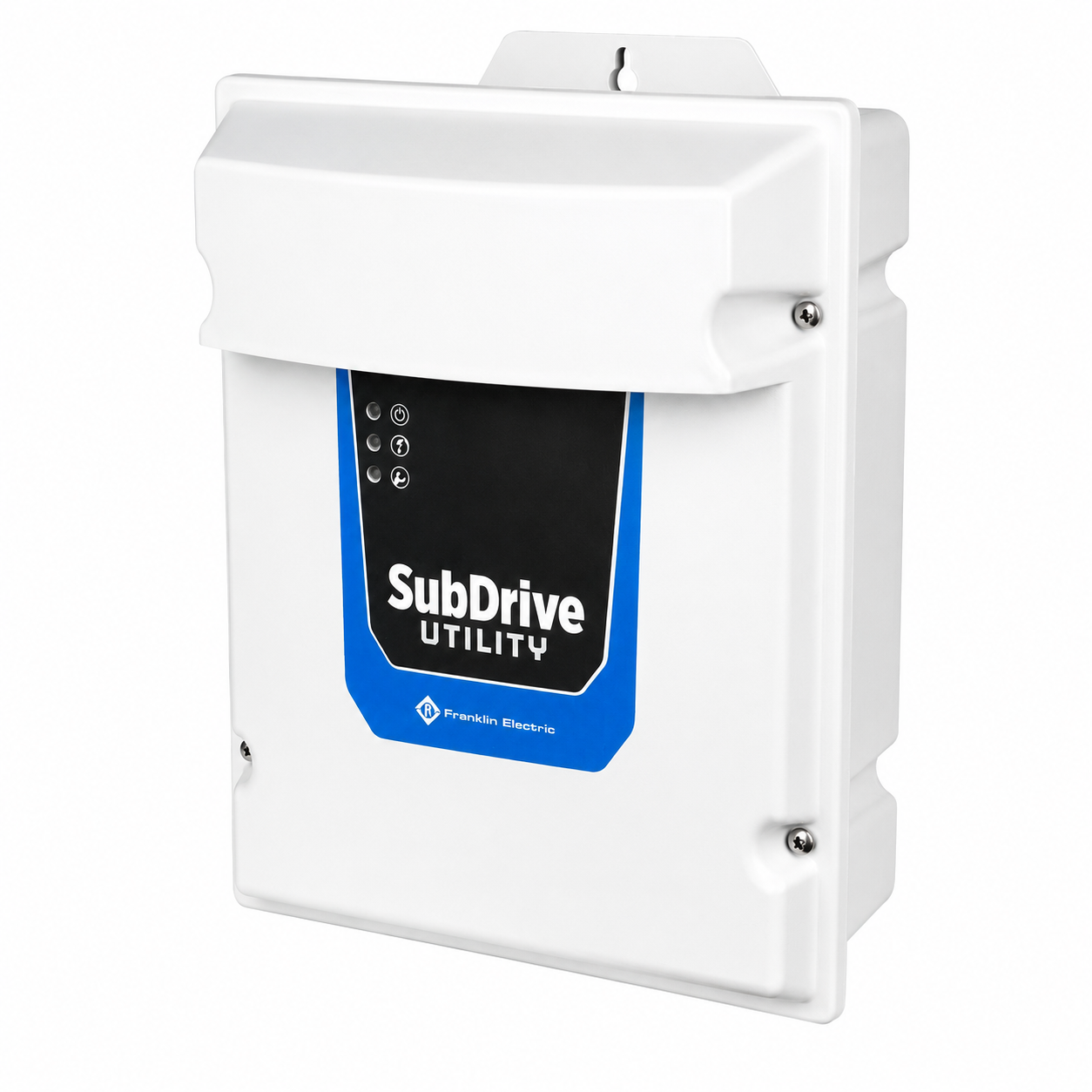

Franklin Electric item 5870202003 – SUBDRIVE UTILITY UT2W (with Pressure Sensor), 2-Wire Single-Phase Motors

The Franklin Electric SubDrive Utility Variable Frequency Drive (VFD) 5870202003 – SUBDRIVE UTILITY UT2W (with Pressure Sensor), intended for 2-Wire Single-Phase Motors delivers constant water pressure, advanced motor protection, and reliable performance in a compact, space-saving design. Requiring only a small pressure tank in most applications, the system occupies significantly less space than traditional pressure tank systems while providing consistent water pressure throughout your home, farm, or commercial application.

Housed in a durable NEMA 3R (Type 3R) enclosure, the SubDrive Utility is designed for both indoor and outdoor installation and offers protection against falling rain, sleet, and harsh weather conditions. With built-in motor protection and intelligent variable speed control, it helps extend pump life, reduce cycling, improve energy efficiency, and deliver dependable water pressure exactly when you need it.

Features & Benefits:

• Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrive Utility delivers unique features:
• Provides consistent water pressure across a system, eliminating fluctuations

• Additional built-in protections include:
• Underload (Dry-run) with customizable sensitivity
• Overload / Locked pump
• Output short circuit and open circuit
• Undervoltage

• Simple Installation, Easy-to-install drive: most applications require the simple flip of one switch, saving significant time during installation

• Versatility for Multiple Applications:·

• Ideal for retrofitting or optimizing existing single-phase, two-wire or three-wire, and three-phase submersible or above ground pumping systems up to 2 horsepower
• Available options as a standalone drive or as the popular SubDrive QuickPAK, delivering motor, pump, and drive all in one package

• Smaller Footprint, Smarter Use of Space:
• Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing units
• Cost-effective solution that replaces the need for multiple control boxes, a pressure switch, and larger tanks; delivers a total system cost at or below standard installations with pump flows of 10 gpm and greater
• Can be used indoors or outside since the self-contained NEMA 3R-rated drive provides a degree of protection against falling rain or sleet

• Fully Supported: Comes fully supported by the industry-leading technical support professionals and field service engineers
