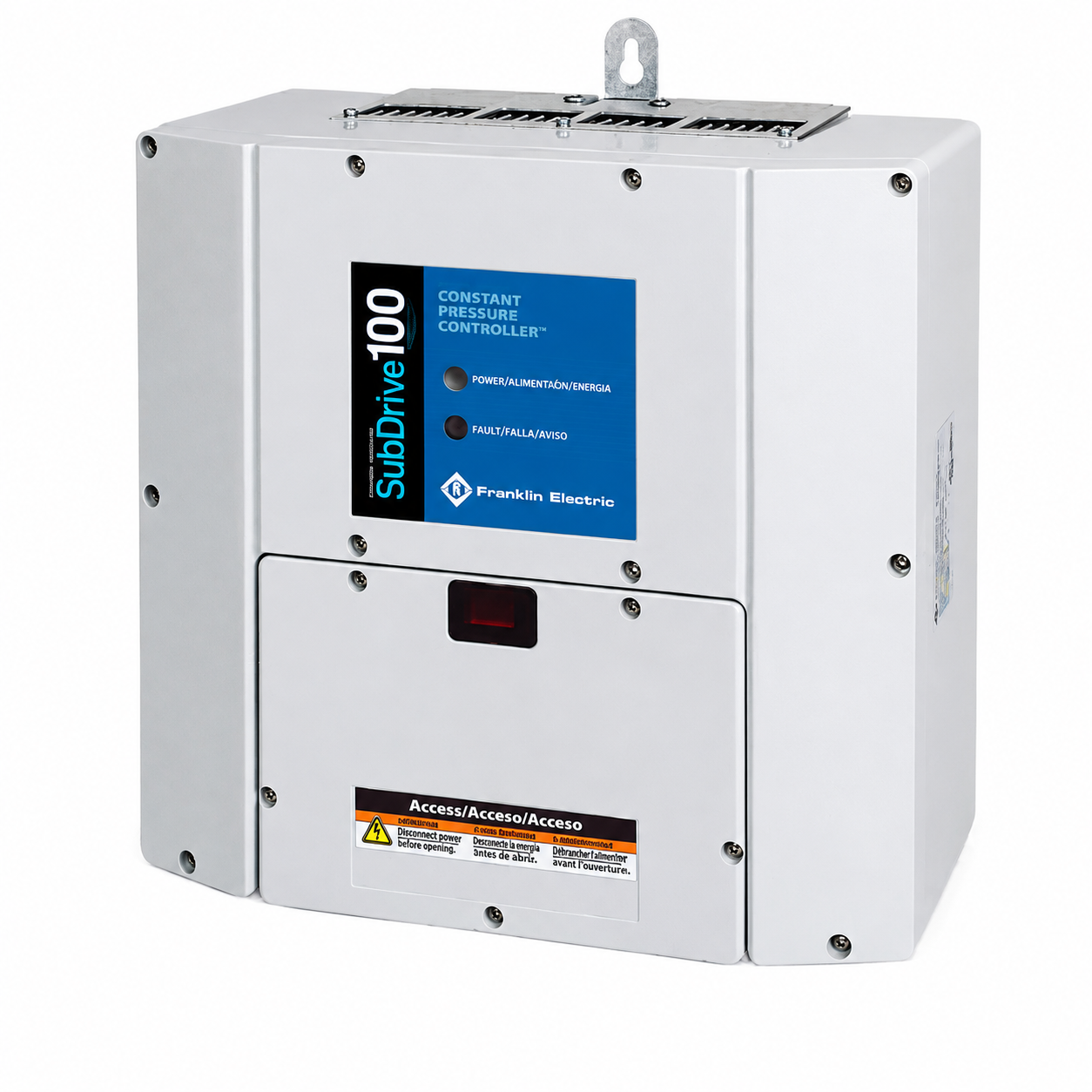

Franklin Electric item 5870204104 – SUBDRIVE 100 N4, NEMA 4 with Pressure Sensor (3 Phase Maximum Motor 2 HP, Maximum Output Current 8.1 A, Maximum Input Power 3800 W)

The Franklin Electric 5870204104 SubDrive 100 delivers constant water pressure for residential, agricultural, and commercial water systems. Designed for easy installation and housed in a rugged NEMA 4 weatherproof enclosure, these drives provide advanced motor protection, soft start technology, and reliable variable-speed performance for submersible and above-ground pumps. Compatible with a wide range of single-phase and three-phase applications, SubDrive systems improve efficiency, reduce pump cycling, extend equipment life, and maintain consistent water pressure in even the most demanding environments.

Please Note:  Image is a stock photo and may not match exactly

Features & Benefits:

• Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrives deliver unique features:
  • Provides consistent water pressure across a system, eliminating fluctuations
  • Soft start maximizes system life
  • Advanced filtering to remove radio frequency interference

• • Additional built-in protections include:
    • Underload (Dry-run) with customizable sensitivity
    • Overload / Locked pump
    • Output short circuit and open circuit
    • Undervoltage
    • Electrical surge
    • Overheated controller

• Simple Installation: Easy-to-install drive; most applications require the simple flip of one switch, saving significant time during installation.

• Versatility for Multiple Applications:
  • From SubDrive75 thru SubDrive300, SubDrive (NEMA 4) models are designed to provide constant pressure for three-phase motors using single-phase input power for 1-1/2 – 5 hp jobs.

  • Available options as a standalone drive or as the popular SubDrive QuickPAK, delivering motor, pump, and drive all in one package

• Smaller Footprint, Smarter Use of Space:
  • Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing larger tanks
  • Ideal for demanding applications since the self-contained NEMA 4 enclosures (rated for indoor or outdoor use) offer robust protection against harsh environmental conditions

• Fully Supported: Comes fully supported by the industry-leading technical support professionals and field service engineers
