Franklin Electric SDCP-SUB1523 – SD CONNECT PLUS With Output Filter, SUBDRIVE Connect PLUS (230V, 15 HP, 48 A)

Franklin Electric SDCP-SUB1523 – SD CONNECT PLUS With Output Filter, SUBDRIVE Connect PLUS (230V, 15 HP, 48 A)

$5,082.60 USD
$8,471.00 USD $5,082.60 USD
Sale Sold out
Shipping calculated at checkout.

SDCP-SUB1523

The Franklin Electric SDCP-SUB1523 SubDrive Connect Plus™ Variable Frequency Drive (VFD) is a powerful constant-pressure solution engineered specifically for water pumping systems using three-phase submersible and above-ground pumps. Designed for residential, agricultural, commercial, industrial, and municipal applications, the SubDrive Connect Plus delivers consistent water pressure, soft-start motor protection, and advanced pump safeguards to maximize system performance and reliability. With support for three-phase motors up to 30 HP, built-in Bluetooth connectivity, FE Connect mobile app compatibility, Modbus communication, and integrated pump protection features, it simplifies installation, commissioning, monitoring, and troubleshooting. The compact NEMA 3R enclosure is suitable for both indoor and outdoor installations, while select 230V models offer phase conversion from single-phase input to three-phase motor output, making them an ideal solution for a wide range of water system applications.

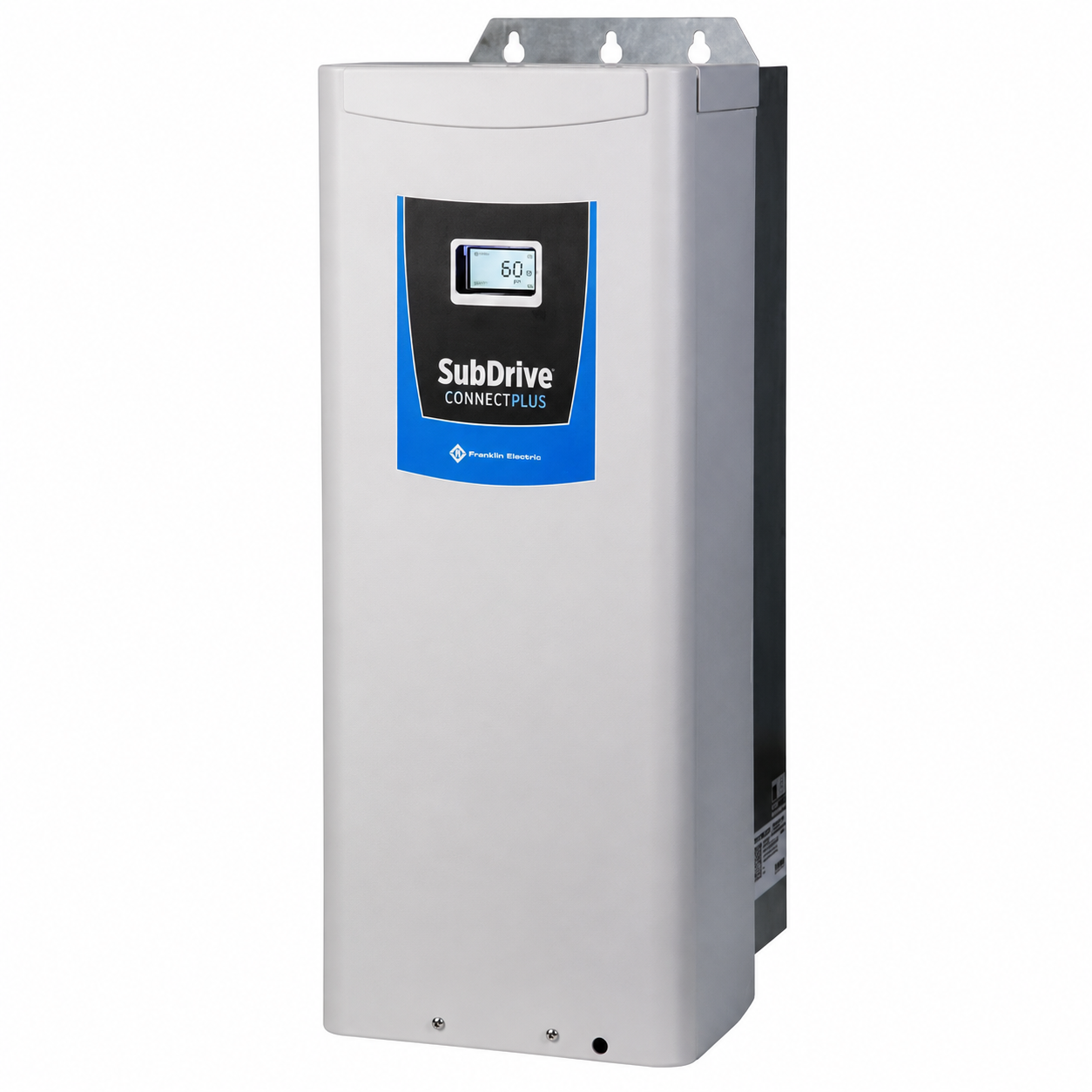

Please Note:  Image is a stock photo and may not match exactly

Features & Benefits:

    • Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrive Connect Plus delivers unique features:
      • Provides consistent water pressure across a system, eliminating fluctuations
      • Dual set point and adjustable drawdown for exact pressure control
      • Soft start maximizes system life
      • Run/stop and hand/auto control
      • Modbus protocol enables remote communication and control
      • Additional built-in protections include:
        • Pipe fill mode to reduce water hammer
        • Underload (Dry-run) with customizable sensitivity and off time
        • Overload / Locked pump
        • Broken pipe detection
        • Output short circuit and open circuit
        • Undervoltage
        • Electrical surge
        • Overheated controller
        • Moisture sensor input
        • Run and fault relays
    • Simple Installation, Made Easier Through Connectivity: The easy-to-install platform uses an array of setup, local monitoring, and assisted troubleshooting solutions to help you save time during installation and servicing:
      • LCD display provides immediate feedback and read-outs of pressure and system status
      • No advanced programming is required with single-level menu and DIP switches for basic drive configuration
      • Integrated connectivity and compatibility with our FE Connect mobile app for real-time data and monitoring; access to advanced features such as motor frequency range, lead/lag/alternation, broken pipe detection, and fault log retrieval
      • Get real-time support powered by FE Connect’s One to-One™ feature: Temporarily give live access to an off-site contributor, whether Franklin Electric’s support team or your internal experts. Fast, convenient and fully secure.
    • Versatility for Multiple Applications:
      • Ideal for new construction or retrofitting and optimizing submersible and surface systems up to 30 horsepower, including projects powered by MagForce High Efficiency Motors
      • Built-in lead/lag and alternation capability for up to 8 drives
      • Phase conversion allows for single-phase or 3-phase input in 230 V models
      • Comes standard with various input/output (I/O) connections or terminals for streamlined compatibility with adjacent systems
    • Smaller Footprint, Smarter Use of Space:
      • Compact design, that is ideal for wall-mounting, provides a cost-effective solution when compared to high-horsepower systems that use starters or VFD panel packages
      • Can be used indoors or outside since the self-contained NEMA 3R-rated drive provides a degree of protection against falling rain or sleet
    Item: SDCP-SUB1523
    Model: SD CONNECT PLUS 230V 15HP 48A WITH OUTPUT FILTER

    Ratings
    Frequency 60 Hz
    Communication Protocols Bluetooth
    Included Filtering (Input or Output) Output Filter Type dv/dt
    Hz 60 Hz
    Input Phase Three-Phase and Single-Phase
    Output Phase Three-Phase
    Input Power Factor 0.75
    Input Power Max 17600 W
    Input voltage single phase (VAC) 208/230 VAC
    Input voltage three phase (VAC) 208/230 VAC
    kAIC Rating 5 kA
    Minimum Carrier Frequency 2.5 kHz
    Maximum Carrier Frequency 2.5 kHz
    Minimum Output Amps (3 Phase) 1A @ 230 VAC
    Maximum Output Amps (3 Phase) 48A
    Minimum Output Frequency 15Hz (CEN), 30Hz (SUB)
    Maximum Output Frequency 60Hz (CEN), 60Hz (SUB)
    Minimum Output Frequency Hz 30 Hz
    Maximum Output Frequency Hz 60 Hz
    Output Current 48 A
    Maximum Output Current 48 A
    Output Voltage 230 VAC
    Output Voltage - 3 Phase (VAC) 230 VAC

    Operation
    Pressure Sensor Included No
    Pressure Transducer Included YES
    Enclosure Rating Type 3R
    Minimum Operating Temperature -13 °F
    Maximum Operating Temperature 104 °F
    Pressure Transducer Included YES
    Storage Temperature -13° to 144 °F (-25° to 65 °C)
    Maximum Storage Temperature 149 °F
    Minimum Storage Temperature -13 °F

    Materials of Construction
    Shelf Life 1.5 year

    Dimensions
    Product Length 34.25 "
    Product Width 13.78 "
    Product Height 9.95 "
    Product Weight 77.16 lb
    Product Weight with Pack 77 lb
    Carton Length 38.25 "
    Carton Width 17.75 "
    Carton Height 14.63 "

    Other
    Drinking Water Agency Approvals ANSI/NSF Standard 61
    Electrical Agency Approvals cUL Listed / UL
    Warranty Standard Time 12 Month Install / 24 Month Manufacturing
