Goulds 01SH06A05E1C2 e-SH 316 Stainless Steel End Suction Centrifugal Pump

Goulds 01SH06A05E1C2 e-SH 316 Stainless Steel End Suction Centrifugal Pump

$3,969.00 USD
$7,096.00 USD $3,969.00 USD
Sale Sold out
Shipping calculated at checkout.

01SH06A05E1C2

Goulds 01SH06A05E1C2 e-SH 316 Stainless Steel End Suction Centrifugal Pump

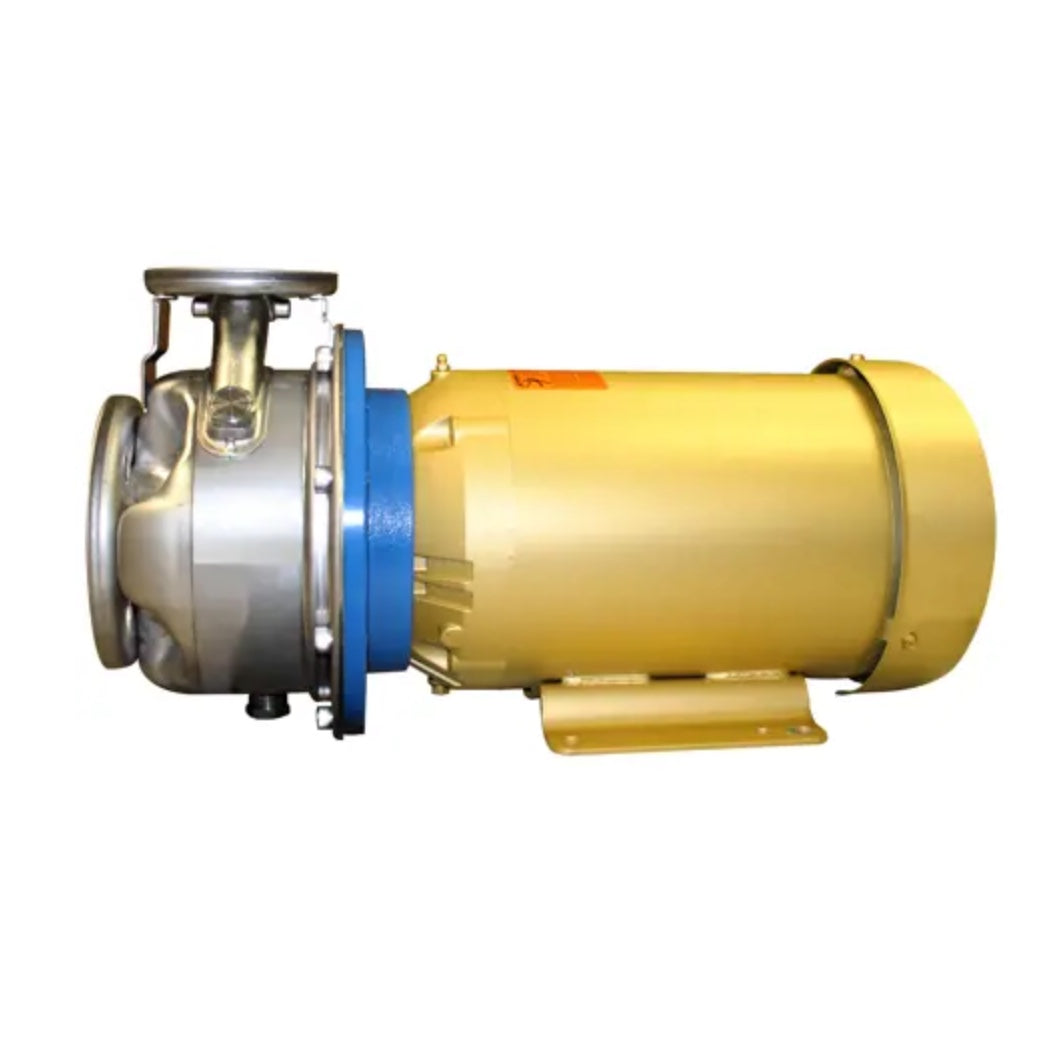

**Picture is stock photo and may not match**

Specifications:

Size: 1 x 2 -6

HP: 5 HP

RPM: 3500 RPM

Motor: Single Phase, 60 Hz, 230V, TEFC

e-SH Series Features:

  • AISI 316 stainless steel construction for reduced corrosion and improved strength and ductility
  • Back pull-out design allows easy access to impeller, bracket and motor to simplify maintenance
  • Interchangeable John Crane Type 21 mechanical seals increase long-term effectiveness
  • Replaceable wear rings to maximize wear life
  • NEMA premium efficient motors
  • Liquid temperatures up to 250°F
  • NSF/ANSI 61 Drinking Water System Components Standard (pumps assembled in factory)

Increased Efficiency and Proven Performance for a Range of Applications

The e-SH 316 stainless steel (SS) end suction pump is a centrifugal pump featuring a corrosion resistant 316 SS impeller. It is specially designed to handle water, non-aggressive or moderately aggressive liquids in commercial, industrial and a diverse range of OEM applications.

The e-SH pump replaces the model SSH centrifugal pumps with better efficiency to help you reach your operational goals while maintaining proven performance. With standard back pull-out design, maintenance can be done without disconnecting the pump body from the piping.

The e-SH centrifugal pump is available in the following configurations:

Close-coupled: compact design that saves space and simplifies maintenance

Frame mounted: flexible-coupled with cast iron power frame (grease lubricated ball bearing assembly

Bare shaft pump: version without driver suitable to be coupled with a standard electric motor

Expert support

Since the proper selection and configuration of your e-SH pump is critical to long-term efficiency and dependability, give us a call. Our experienced application engineers will ensure your pump is optimized for your application and designed to deliver the long-lasting, reliable service that you expect.

Online selection tool

Simplify selection with Xylem Solver, our user-friendly online selection tool. Easily configure your pump based on your application. We’ll assemble your pump and get it on its way.

Applications

  • Water intake
  • Water transfer and circulation
  • Pressure boosting
  • Process cooling and heating
  • Fluid transfer and transport
  • Produced water transfer and boosting
  • Boiler feed booster

Pumped Fluids

  • Groundwater
  • Potable water
  • Process water
  • Gray/used water
  • Heat transfer fluids
  • Produced water

Related Products

A. Casing – durable 316 SS to handle a diverse range of pumped fluids

B. Stainless steel impeller – resists corrosion to maintain performance and minimize downtime

C. Shaft sleeve – replaceable 316 SS sleeves minimize shaft wear.

D. Replaceable wear rings – protect against debris, reduce downtime, increase efficiency, simplify maintenance and maximize wear life

E. Mechanical seal – standard John Crane type 21 mechanical seal to minimize leakage, protect equipment from excessive wear, lower pump maintenance costs and increase long-term cost-effectiveness

F. Bearing frame – features a cast iron power frame, rigidly supported, grease lubricated ball bearing assembly
