Goulds 15HM04N55T6PBQE e-HM Series Stainless Steel Horizontal Multistage Pump (7.5 HP, 208-230/460V, Three Phase, 4 Stage, TEFC)

Goulds 15HM04N55T6PBQE e-HM Series Stainless Steel Horizontal Multistage Pump features a powerful 7.5 HP Three Phase motor and Stainless Steel pump head. A maximum flow rate up to 127 gpm or maximum discharge pressure of 235 psi make this pump suitable for many applications. Designed and manufactured by Goulds Water Technology. All pumps are factory tested before shipping to ensure seamless installation and reliable performance. Contact a Dade Pump representative today for assistance in selecting the correct pump and motor for your needs.

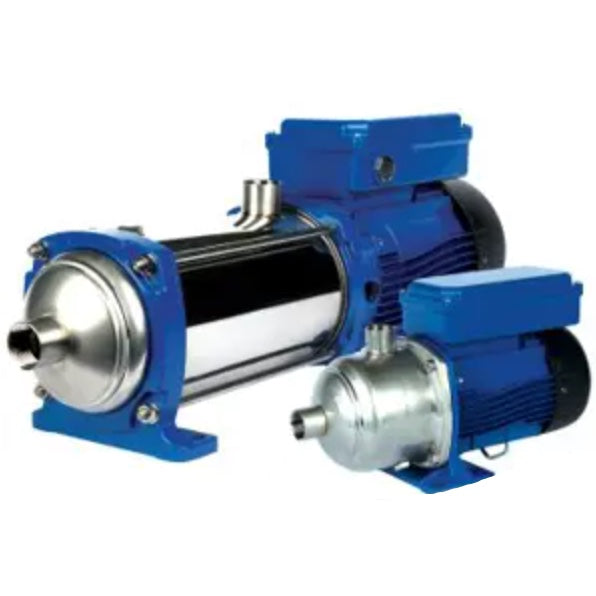

**Picture is stock photo and may not match the exact specifications**

Product Specifications:

Motor:  7.5 HP, 208-230/460V, Three Phase

Stages:  4

RPM:  3500

Maximum Flow Rate:   127 GPM - See Flow Chart

Maximum Liquid Temperature:  248 Degrees F (120 Degrees C)

Connections:  2" NPT Suction x 1-1/2" NPT Discharge

Series Features:

Xylem’s Goulds Water Technology e-HM series stainless steel horizontal multistage pumps are engineered specifically for commercial and industrial applications. Built on the proven hydraulics of the e-SV multistage pump, the e-HM delivers industry-leading efficiency. The high-efficiency motor means that you can use less pump for more performance. Applications include: industrial washing and cleaning; food and beverage processing; industrial refrigeration; water treatment; and, custom OEM applications.

e-HM Pumps:

• Up to 15% more efficient. The e-HM is based on the innovative platform and market-proven hydraulics of our e-SV vertical multistage pumps, delivering energy efficiency that outperforms the competition by up to 15%.
• Powerful versatility. The e-HM can be configured for a wide range of food and beverage applications, including support for flows of 2+ gallons. With two designs, six models and modular construction, it’s completely customizable.
• Compact, durable design. The smaller motor and space-saving design lets the e-HM fit where you need it. The standard balanced impeller reduces axial thrust 40%, extending motor bearing life. And a 20% thicker pump body enhances durability, increasing reliability.
• More performance for less cost. The e-HM is a high-performance pump with full pressure-boosting capabilities—using significantly less energy. Do more while spending less.

The e-HM is a close-coupled horizontal multistage design with NPT threaded inlet and outlet connections, and TEFC equivalent high-efficiency motors. The pump incorporates an innovative hydraulic design that provides the highest efficiency in the market today.

The e-HM is available in two configurations:

• Compact design Sizes 1HM, 3HM, and 5HM
  • 1HM and 3HM up to 6 stages
  • 5HM up to 5 stages
• Sleeve design Sizes 1HM, 3HM, 5HM, 10HM, 15HM and 22HM
  • 1HM & 3HM start at 7 stages
  • 5HM starts at 6 stages

The compact design is made of one single piece of fabricated stainless steel for the pump body which is directly connected to the motor flange. The sleeve design is made of an external stainless steel TIG welded sleeve, and incorporates a separate suction housing. All available in 316 stainless steel construction consisting of a 20% increase in pump body thickness for enhanced durability and reliability.
