Goulds

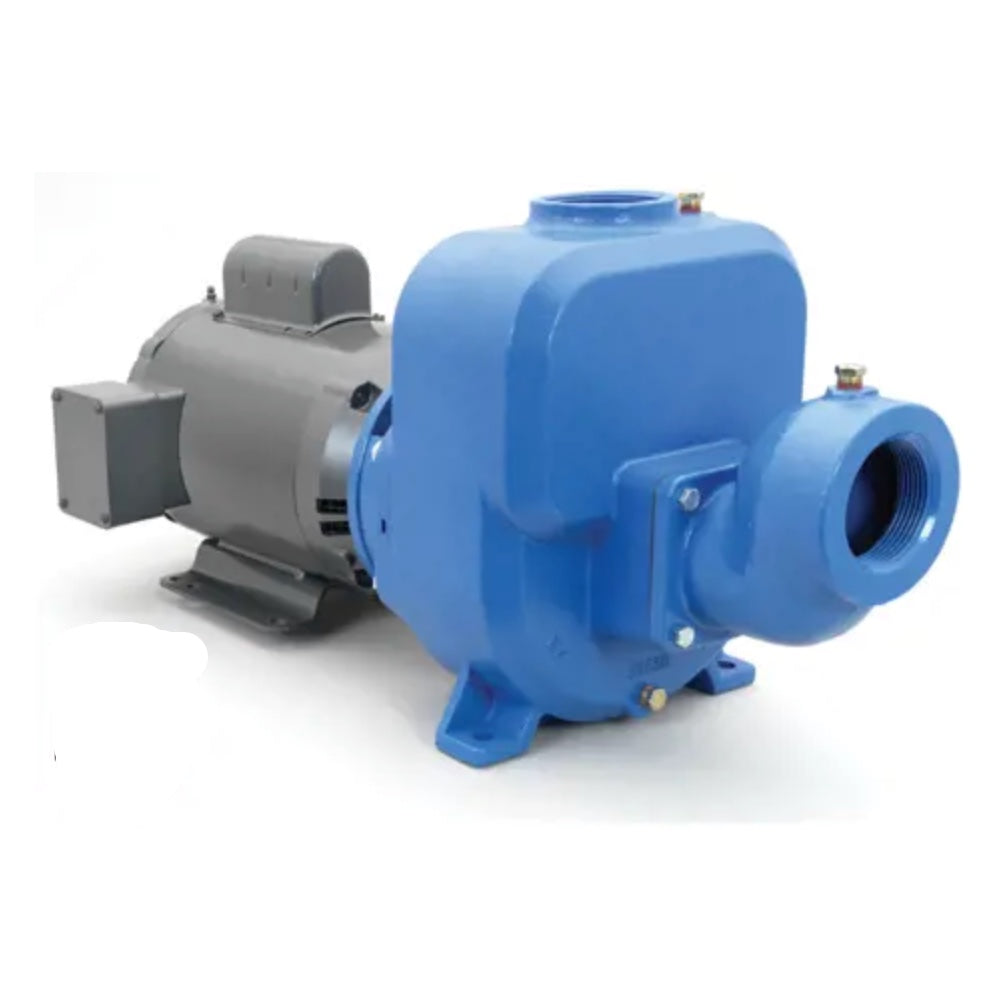

Goulds 30SPM10F PrimeLine® SP Series Medium Head Self-Priming Cast Iron Centrifugal Pump (3 HP, Single Phase, 115/230V, ODP)
Goulds 30SPM10F PrimeLine® SP Series Medium Head Self-Priming Cast Iron Centrifugal Pump (3 HP, Single Phase, 115/230V, ODP)
Add to cart to view your discounted price
SKU:30SPM10F
Couldn't load pickup availability
The Goulds 30SPM10F PrimeLine® SP Series Medium Head Self-Priming Cast Iron Centrifugal Pump is the pump of choice for irrigation, livestock watering, dewatering or liquid transfer. A built in check valve assures quick and reliable priming resulting in less seal failure and downtime. This version is equipped with a powerful 3 HP motor and includes the suction flange. Built and designed in the USA by Goulds, a tried and true name in the pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Cast Iron
Impeller: Bronze
Voltage: 230V
Motor: 5 HP, Single Phase
Ports: 2-1/2" Suction x 2" Discharge NPT
Maximum Operating Flow Rate at 20 psi: 162 gpm - See Performance Chart
Maximum Head: 138.6'
Duty Cycle: Continuous
Frequency: 60 Hz
Some of the fastest priming pumps on the market. Available in high head or medium head series. Features mechanical seals, easy service design, heavy-duty motors, rugged construction. Available in 3 and 5 HP. Optional 6" and 8" Trap Packages are available
Features:
- 3 and 5 HP: Both high head and medium head models offer heavy-duty motors, easy service design, and air volume control tapping.
- Drain Port: Provided for easy winterizing.
- Medium Head Models: Deliver up to 115' of head with capacities to 159 GPM.
- High Head Models: Deliver up to 138' of head with capacities to 162 GPM.
- Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
- Heavy-Duty Motors: Designed for continuous operation. Capacitor start, will not cause electrical interference with TV or other appliances. Nationally known motors have ball bearing, stainless steel shaft. For single- and three-phase operation, 3450 RPM.
- Body and Base: Close-grained cast iron
- Impeller: Bronze
- Diffuser: Cast iron
- Shaft: Carbon steel inside removable shaft sleeve of stainless steel.
- Max Inlet Pressure: 20 PSI Max
- Discharge Pressure: 100 PSI Max
- Liquid Temperature: 60°C/140°F Max Ambient Air Temperature: 40°C/104°F
Applications:
Lawn sprinkling: Pumps can be safely operated by timer or other automatic device
Contractors: For dewatering excavation, jetting, water transfer and supply
Agriculture: Seed bed and plot irrigation, stock watering
Industrial: Sump drainage, fire protection, marine pumping, liquid transfer and supply operations
