Goulds 4NS12Q2BC 4NS 4″ Non-Clog Sewage Pump (30 HP, Three Phase, 200V, 1750 RPM)

Goulds 4NS12Q2BC 4NS 4″ Non-Clog Sewage Pump is backed by 170 years of American ingenuity - engineered, built and tested in the USA. Heavy duty cast iron, two vane closed design impeller and dual mechanical seals ensure high efficiency and maximum performance and longevity. The 4NS series is the best choice when continuous operation is necessary.

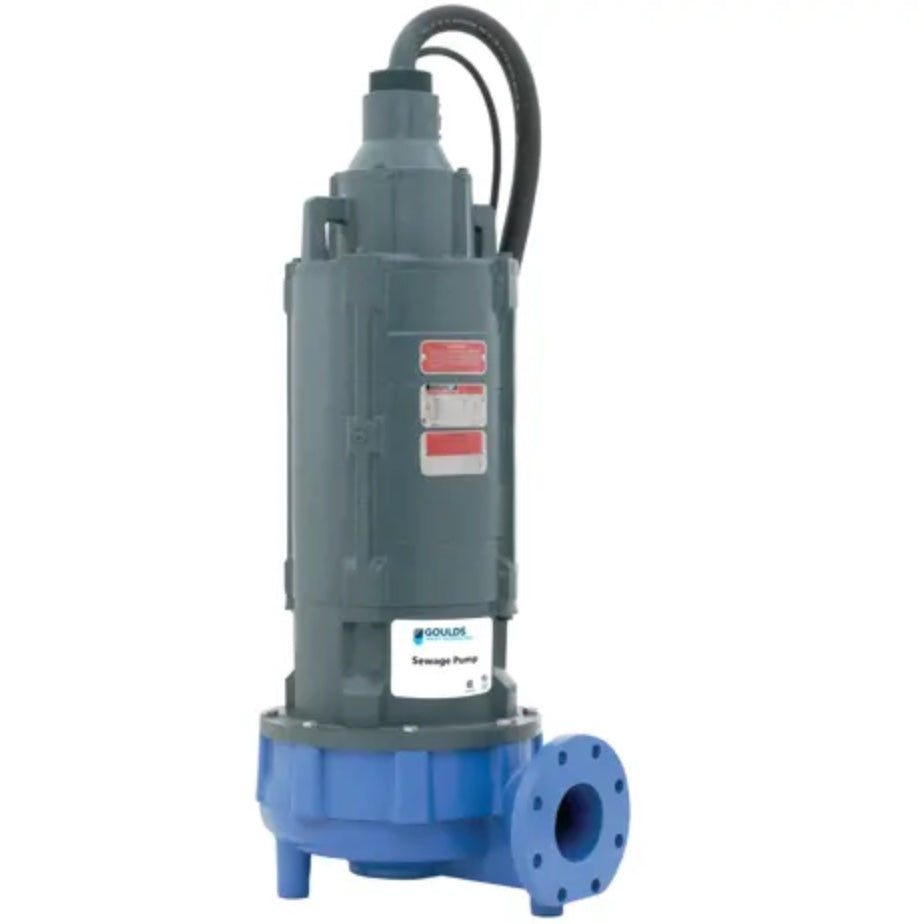

**Picture is stock photo - please contact customer service for assistance in selecting the correct pump and motor for your needs.**

Specifications:

HP:  30

Body Material:  Cast Iron

Impeller:  Cast Iron

Motor:  Three Phase, 200V

Impeller Diameter:  10.75"

S.F. Amps:  103.2

Service Factor:  1.15

Full Load Amps:  89.7

Locked Rotor Amps:  472.0

Power Cable Size:  2/4

Sensor Cable Size:  18/5

Frame Size:  250TYS

Weight:  890 lbs

• Cast iron, two vane closed design impeller for high efficiency and maximum wear life
• Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
• Heavy duty cast iron, volute type casing for maximum efficiency
• Dual Mechanical Seals
• Designed for Continuous Operation

Series Features:

• Impeller: Cast iron, two vane closed design for high efficiency and maximum wear life. Balanced for smooth operation.
• Bronze Wear Ring: Replaceable to renew the running clearances and efficiencies to original conditions.
• Casing: Heavy duty cast iron, volute type for maximum efficiency. 4" 125# ANSI cast iron flanged. Adaptable to guide rail mounting system.
• Tandem Seals: Two independently mounted mechanical face type seals are separated by an oil filled chamber. The oil chamber acts as a barrier to trap moisture and provide time for a planned shutdown and maintenance. The oil provides lubrication to the internal (upper) seal. Carbon rotating and ceramic stationary faces are standard on both internal (upper) and external (lower) seals. Optional materials are available for the lower seals. See the Nomenclature Page for order number changes to order either silicon carbide/silicon carbide faces with Viton or silicon carbide/tungsten carbide faces with Viton elastomers. These are recommended for applications containing fine solids or abrasives as found in parking lot/garage drainage and construction dewatering jobs.
• Moisture Protection System: Two-wire, dual moisture sensing probes are located in the oil filled chamber between the inner and outer seals. When connected to a control panel with an optional Moisture Detection System and an alarm it will detect the presence of moisture should the outer seal fail. It will also detect moisture in the motor chamber and provide a warning prior to water levels reaching the bearing or stator.
• Designed for Continuous Operation: Motor is rated continuous duty submerged condition in water that is 40º C or below. Maximum runtime with pump unsubmerged for 7½–40 HP is 15 minutes. Motor is suitable for 10 starts per hour.
• Bearings: Ball, single-row, angular contact, Conrad type bearings with a Class 3 internal fit conforming to AFBMA Standard 20 are used. The bearings are greased for life with a premium moisture resistant polyurea thickened grease containing rust inhibitors and suitable for operation over a range of – 25º C to + 120º C.
• Impeller Mounting Screw: 300 series stainless steel with anti-rotational locking patch.
• Castings: All iron castings are ASTM A48 class 30 gray cast iron.

Applications:

Heavy duty design features for a wide range of commercial and industrial applications such as:

• Sewage systems
• Flood and pollution control
• Industrial dewatering
• Wastewater treatment plants
• Municipal and subdivision lift stations

Specifications:

• Pump:
  • Solids handling capabilities: 3" maximum.
  • Discharge size: 4" 125# ANSI flanged.
  • Capacities: up to 1160 GPM
  • Total heads: up to 140 feet.
  • Minimum flow: 100 GPM.
  • Maximum flow: end of published curve.
  • Mechanical seals: 304 stainless steel metal parts, BUNA-N elastomers with carbon/rotary and ceramic/stationary faces standard for upper and lower seals. Optional lower seals are available with Viton elastomers and either silicon carbide/silicon carbide or silicon carbide/tungsten carbide faces.
  • Fasteners: 300 series stainless steel.Motor:

• • CSA certified motors (Canadian Standards Association)
  • Three phase motors only
  • Available voltages: 200, 230, 400, 460 and 575 volt, 60 Hertz
  • HP Range: 7.5 - 40
  • Motor shaft is a one-piece design of high strength 416 stainless steel
  • All motors are air-filled and designed for continuous duty when fully submerged or for up to 15 minutes operation in air.
  • NEMA design “B” with copper windings
  • Class “F” stator winding designed for inverter duty
  • Moisture System: Two wire dual probe monitoring system constantly monitors seal oil chamber and stator housing for moisture. Note: control panel must contain an alarm circuit and alarm device.
  • Two (2) normally-closed, automatic reset thermostats connected in series and embedded in adjoining phases.
  • Power and sensor cords are 25’ standard length, 50’ available as an option.
  • Motors conform to the latest applicable requirements of NEMA, IEEE, ANSI and NEC standards.
• NOTICE: Class 10 quick trip overload protection must be provided in control panel.
