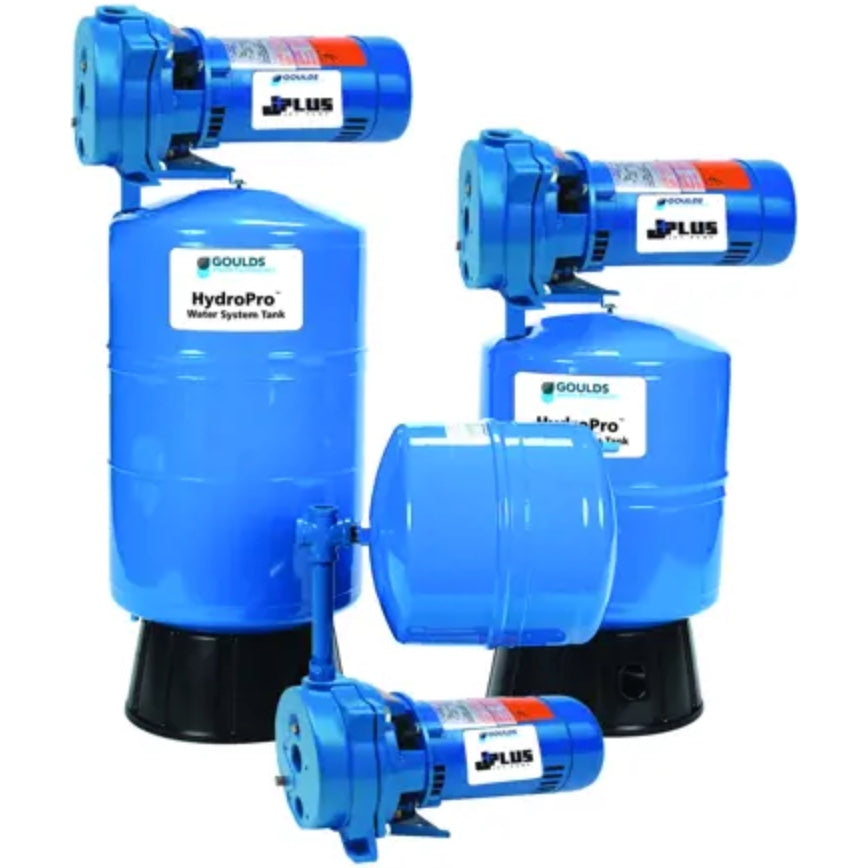

Goulds J05K J+ Series Convertible Jet Pump & Tank Package (1/2 HP, Single Phase, 115/230V, V45MP Tank)
Goulds J05K J+ Series Convertible Jet Pump & Tank Package (1/2 HP, Single Phase, 115/230V, V45MP Tank)
SKU:J05K
Couldn't load pickup availability
Goulds J05K 1/2 HP JRD Series Convertible Jet Pump & Tank Package are pre-configured to conserve space and lessen installation time. Tank included is model number V45MP. This series is NSF Listed ensuring your safety. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Goulds Water Technology, a trusted name in the industry.
Pump & Motor Specifications:
Replacement Pump Model Number: J05LT
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1/2 HP, Single Phase
Impeller Material: Glass-Filled Engineered Composite (FDA Compliant)
Ports: 1-1/4" NPT Suction, 1" NPT Discharge, 1" NPT Pressure
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
Pre-configured jet pump and tank packages are set up to conserve space in your home/utility closet. These tank packages are for home, farm and cottage water systems and booster service. They function the same as your typical jet pump setup.
The J+ is a convertible jet pump, allowing it to be used in a shallow well application or a deep well application depending on which adapter is used. With hp options from ½ to 1½, this pump is designed for use in homes, farms, cottages, and booster services.
Tank Features:
- Deep Drawn Steel Shells: Provide maximum material strength.
- Inner Shell: Prevents diaphragm from over-expanding.
- Heavy Duty Diaphragm: Made of finest quality butyl rubber. Separates air and water, maintains air charge.
- Interior Tank Lining: Fusion bonded polymeric lining (durable polypropylene liner used on V15P). Both meet FDA requirements.
- Maximum Working Pressure: 100 PSI for V45PST and V60PST, 125 PSI for V15P.
- Tank Temperature Rating: Maximum 120º F.
- Appliance Appearance Exterior Finish: High durability exterior finish of tough, powder coat over a zinc phosphate surface treatment.
- Heavy Duty Base: Eliminates corrosion due to condensation and exposure to the elements.
- Made of high density polypropylene. Tanks are designed for installation indoors or where they are protected from rain, irrigation overspray, salt air and other corrosive environments. Always protect tanks from freezing.
Pump Features:
-
Serviceable:
- Back pullout design allows disassembly of pump for service without disturbing piping.
- Two compartment motor for easy access to motor wiring and replaceable components.
- Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium o-ring design fittings need only be hand tight to seal.
- Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits. Can be operated continuously without damage.
- Corrosion Resistant: Electro-coat paint is applied inside and out, then baked on.
- Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system.
- Drain Plug: For ease of winterizing and maintenance.
- Seal Housing: Engineered composite. Corrosion and abrasion resistant.
- Impeller: F.D.A. compliant, glass filled engineered composite.
- Diffuser (Guidevane): F.D.A. compliant, injection molded, food grade, glass filled engineered composite.
- NSF Listed: The first NSF listed jet pumps in the industry. All jet pumps and shallow well components only, deep well components are not listed.
- NEMA service factor
- 60 Hz, 3500 RPM
- 1⁄2 HP, 115/230 V capacitor start
- Built-in overload with automatic reset
- Stainless steel shaft
- Pipe connections: 1" NPT pressure, 11⁄4" NPT suction, 1" NPT discharge
- Pressure switch: AS4 preset 30-50 PSI
Applications:
Specifically designed for:
• Homes • Farms • Cottages • Booster service
