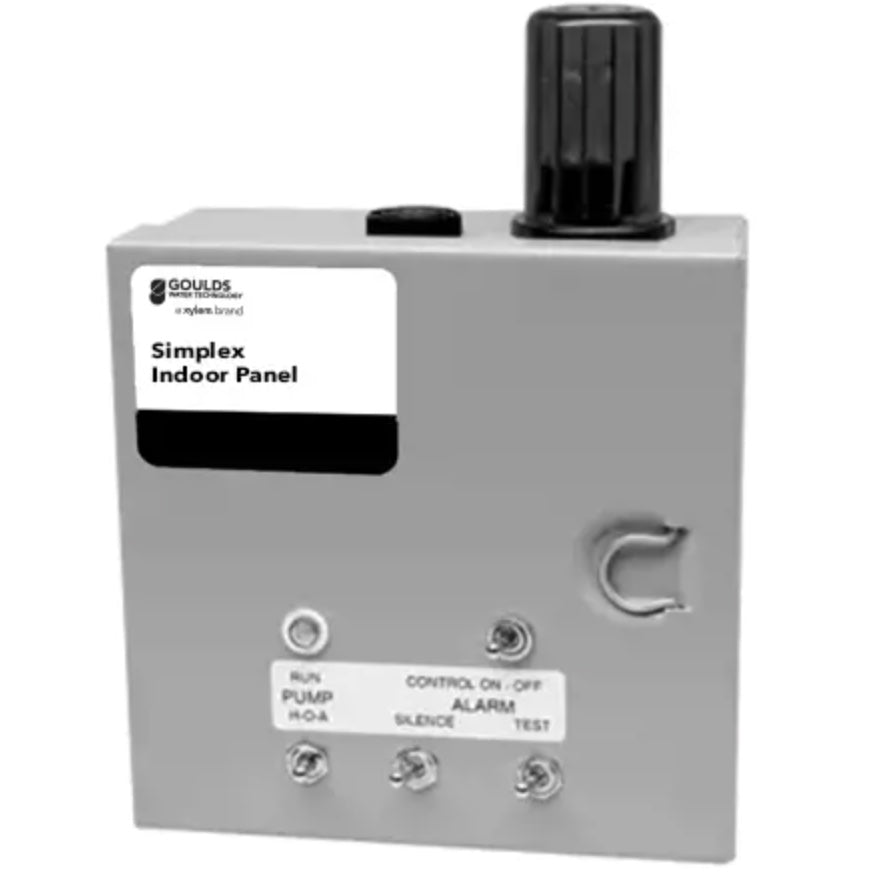

Goulds S10020N1 CentriPro Simplex Indoor Control Panel (Single Phase, 115/230V, 0-20 Amp Range, NEMA 1)

The Goulds S10020N1 CentriPro Simplex Indoor Control Panel is the preferred choice for both residential and commercial applications. A rugged NEMA 1 steel construction protects the panel for safe operation indoors. Please contact a customer service technician for assistance with selecting the appropriate model for your needs.

Panel:  Simplex

Phase:  Single

Amp Range:  0-20

Voltage:  115/230

The S10020N1 is a simplex liquid level controller featuring a NEMA 1 steel enclosure. It provides automatic alternation for single pump operation. This non-modifiable panel can be wired for a single power feed for pump and control circuit or the control circuit can be wired to a separate power supply to ensure alarm integrity in case of a tripped pump breaker.

Superior quality simplex liquid level controller, automatically maintains pump operation. High level alarm warning for a variety of sump, effluent, sewage and water transfer applications. Not for use in damp, outdoor, or weatherproof applications.

Features:

• High level alarm circuit includes spring loaded through door mounted silence switch for manual silence of alarm horn.
• Through door mounted alarm test switch insures proper operation of the alarm circuit without the need to open the panel.
• Through door mounted pump run light.
• Top mounted high intensity flashing red light provides 360° visibility.
• Pulsating, corrosion proof alarm horn.
• Color coded wiring, screw type terminals and plug in sockets, insure ease of field servicing.
• Field wiring diagram, panel schematic and installation instructions included.
• Entire unit is UL and CUL listed.

Product Specifications:

• Non-modifiable — No options available.
• Accepts single or dual power feed.
• Hand-off-automatic (HOA) pump selection switch.
• On/off control circuit switch.
• Oversized magnetic contactors.
• Numbered terminal strip screw type.
• NEMA 1, 30 watt, flashing red light.
• NEMA 1, steel enclosure.
• NEMA 1, alarm horn – 95db.
• Auxiliary alarm contacts.


Single Phase:

• Field adjustable for 115 or 230 V, 60 Hz.
• Enclosure: 8.0" H x 8.0" W x 4.0" D.
• NOTE: Enclosure dimensions do not include 3" high light.

Additional Features:

• Panel can be wired for a single power feed for pump and control circuit or the control circuit can be wired to a separate power supply to insure alarm integrity in case of a tripped pump breaker.
• Auxiliary alarm contacts provided for remote alarm connection.
• Float Switches – Note: Please order float switches separately. We offer several types and models. See the Float Switch bulletin for available options. The type selected determines the quantity needed. The basin depth and panel location determine the required cord length. Contact your distributor or Customer Service for additional information.
