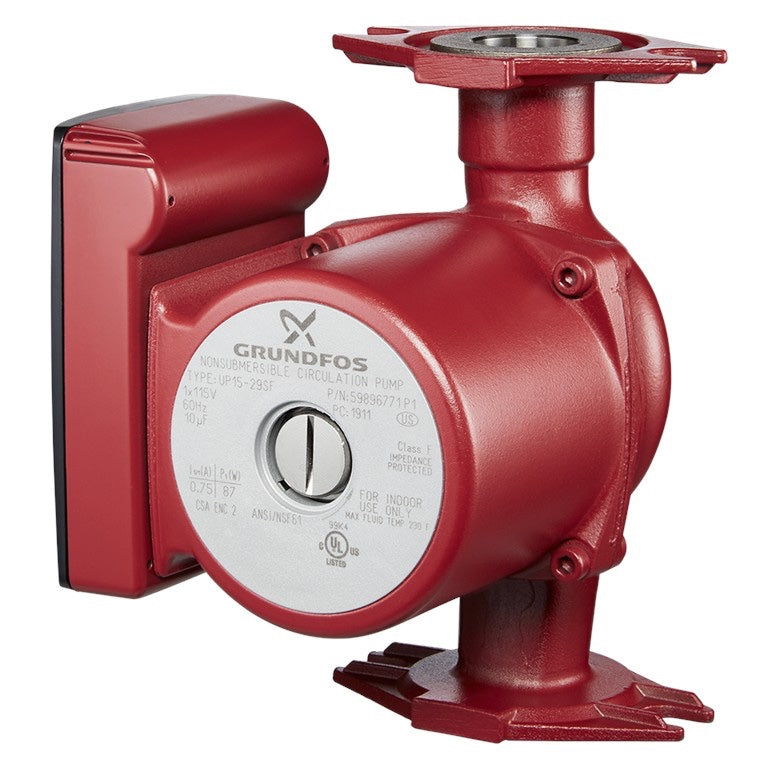

Grundfos UP15-29SU Hot Water Circulator Pump - 59896775 (115V)

Grundfos is the leading manufacturer for circulation pumps. The UP15-29SU is one of the most popular 115V options on the market. The stainless steel housing and high quality internal components keep the hot water flowing in your residential property. As opposed to cast iron pumps on the market - the stainless steel housing will not corrode and contamimate your water. All Grundfos pumps are factory tested before shipping to ensure flawless installation and performance. Contact a Dade Pump representative today for assistance in selecting the correct pump for your specific needs.

Specifications:

Pump Housing:  Stainless Steel

Voltage:  115V, Single Phase

Rated Flow:  10.3 GPM

Maximum Flow:  20.7 GPM

Rated Head:  5.322 Feet

Maximum Head:  9.843 Feet

Impeller:  Composite PES+30% GF

Maximum Ambient Temperature:  104 °F

Manufacturer Description:

Grundfos UP B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP S have a stainless-steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings.

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by:

• Ceramic shaft and radial bearings.
• Carbon axial bearing.
• Stainless steel rotor can and bearing plate.
