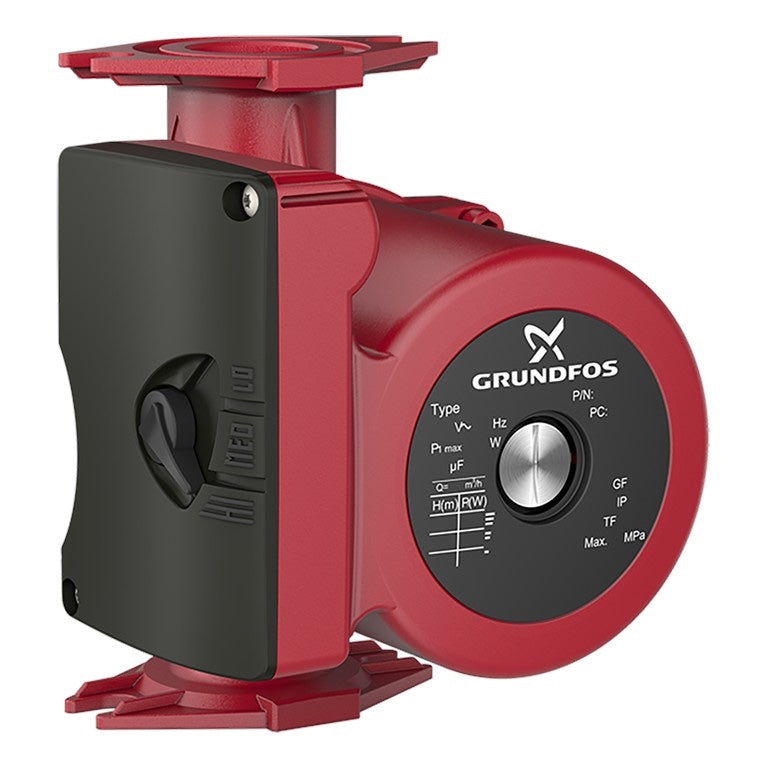

Grundfos UPS26-99FC Hot Water 3-Speed Circulator Pump - 52722512 (115V)

Grundfos is the leading manufacturer for circulation pumps. The UPS26-99FC 3-Speed pump is one of the most popular 115V options on the market. The strong cast iron housing and high quality internal components keep the hot water flowing in your residential property. All Grundfos pumps are factory tested before shipping to ensure flawless installation and performance. Contact a Dade Pump representative today for assistance in selecting the correct pump for your specific needs.

Specifications:

Pump Housing:  Cast Iron

Voltage:  115V, Single Phase

Rated Flow:  17.7 GPM

Maximum Flow:  33 GPM

Rated Head:  16.46 Feet

Maximum Head:  28.87 Feet

Impeller:  Composite PES+30% GF

Maximum Ambient Temperature:  104 °F

Manufacturer Description:

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by:

• Ceramic shaft and radial bearings.
• Carbon axial bearing.
• Stainless steel rotor can and bearing plate.
• Corrosion-resistant impeller, Composite.
• Cast iron pump housing.
