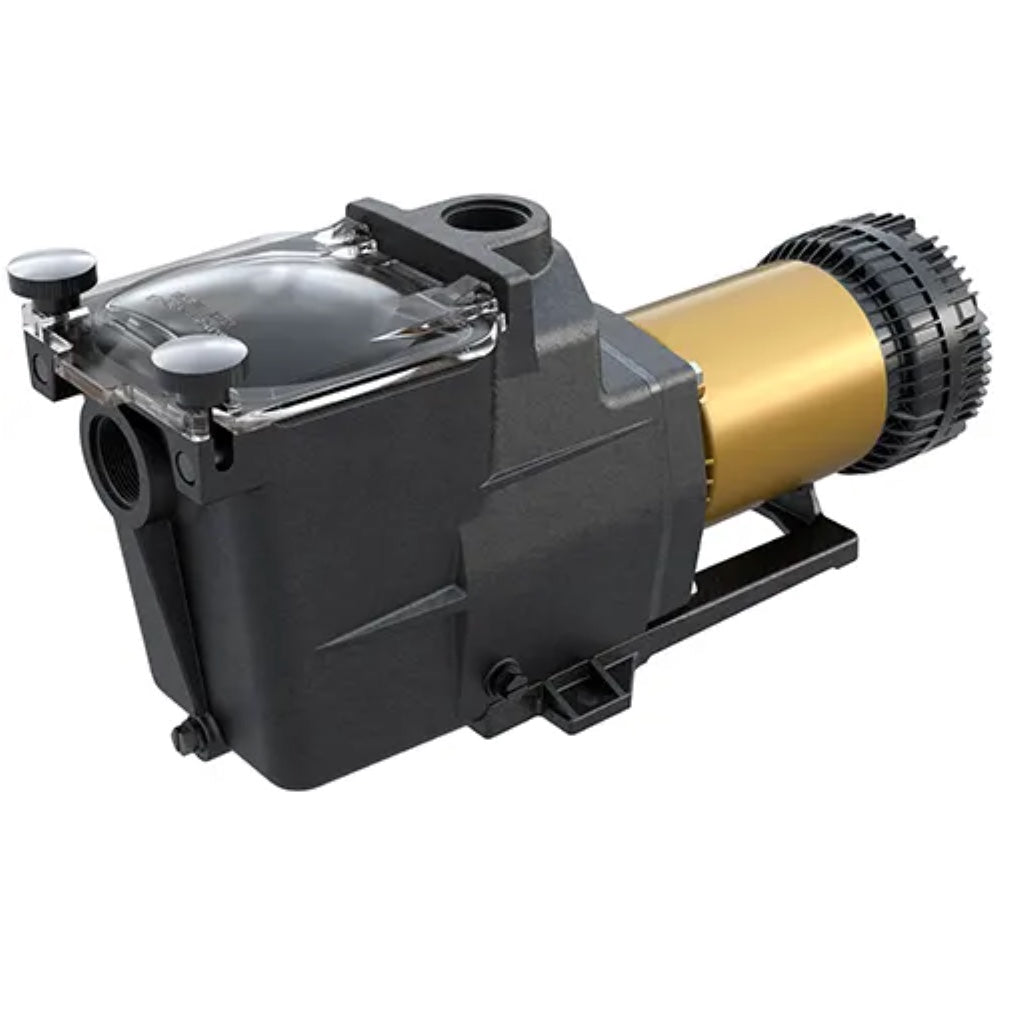

Hayward SP2610X15XE Pool Super Pump® XE, Ultra-High Efficiency Pump, 1.65 HP (Single Phase, 115/230V)
Hayward SP2610X15XE Pool Super Pump® XE, Ultra-High Efficiency Pump, 1.65 HP (Single Phase, 115/230V)
SKU:SP2610X15XE
Couldn't load pickup availability
Hayward SP2610X15XE Pool Super Pump® XE, Ultra-High Efficiency Pump surpasses the Department of Energy standards and is designed for easy installation. A powerful 2.25 HP but still affordable. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Hayward, a trusted name in the pool industry.
Voltage: 115/230V
Motor: 1.65 HP, Single Phase
Duty Cycle: Continuous
Hayward® Super Pump® sets the industry standard for excellence and value—and new Super Pump XE is no exception. Offering energy efficiency that outperforms Dept. of Energy standards while cutting pump equipment costs by almost a third, Super Pump XE is the just-right pump for just about any pool. With quick and easy installation and dual-voltage capability, it's the most versatile way to unmatched value.
• Industry-leading efficiency exceeds DOE benchmarks and performance of many competitive VS pumps
• Easily programmable with up to 6 selectable speeds
• Easy-access control toggles between speeds at the touch of a button
• Dual-voltage capability (230V/115V) for versatile installation
• Simple installation with 2" shorter length than single-speed models and no additional equipment requirements
| Application | New Construction, Renovation, Aftermarket |
|---|---|
| Brand | Hayward |
| Channel | Expert Line |
| DOE Compliant | Yes |
| GTIN | 610377434430 |
| Labor Warranty | 1-year |
| Master Carton Qty | 1 |
| Motor Type | ODP |
| Number of Speeds | Multi Speed |
| Parts Warranty | 3-year |
| Phase | Single Phase |
| Pool Type | In Ground |
| Pump Performance Curves | SP2615X20XE_Performance_Curves |
| Quick Clean Button | No |
| Remote Mount Display | No |
| Rotatable Display | No |
| Shipping Dimensions | 11.9 " x 10.6 " x 30.1 " |
| Shipping Height | 11.9 in |
| Shipping Length | 30.1 in |
| Shipping Weight | 34 lb |
| Shipping Width | 10.6 in |
| Total HP | 2.25 |
| Twist Lock | No |
| Voltage at 60 Hz | 230/115 |
| WEF | 8.0 / 7.9 |
