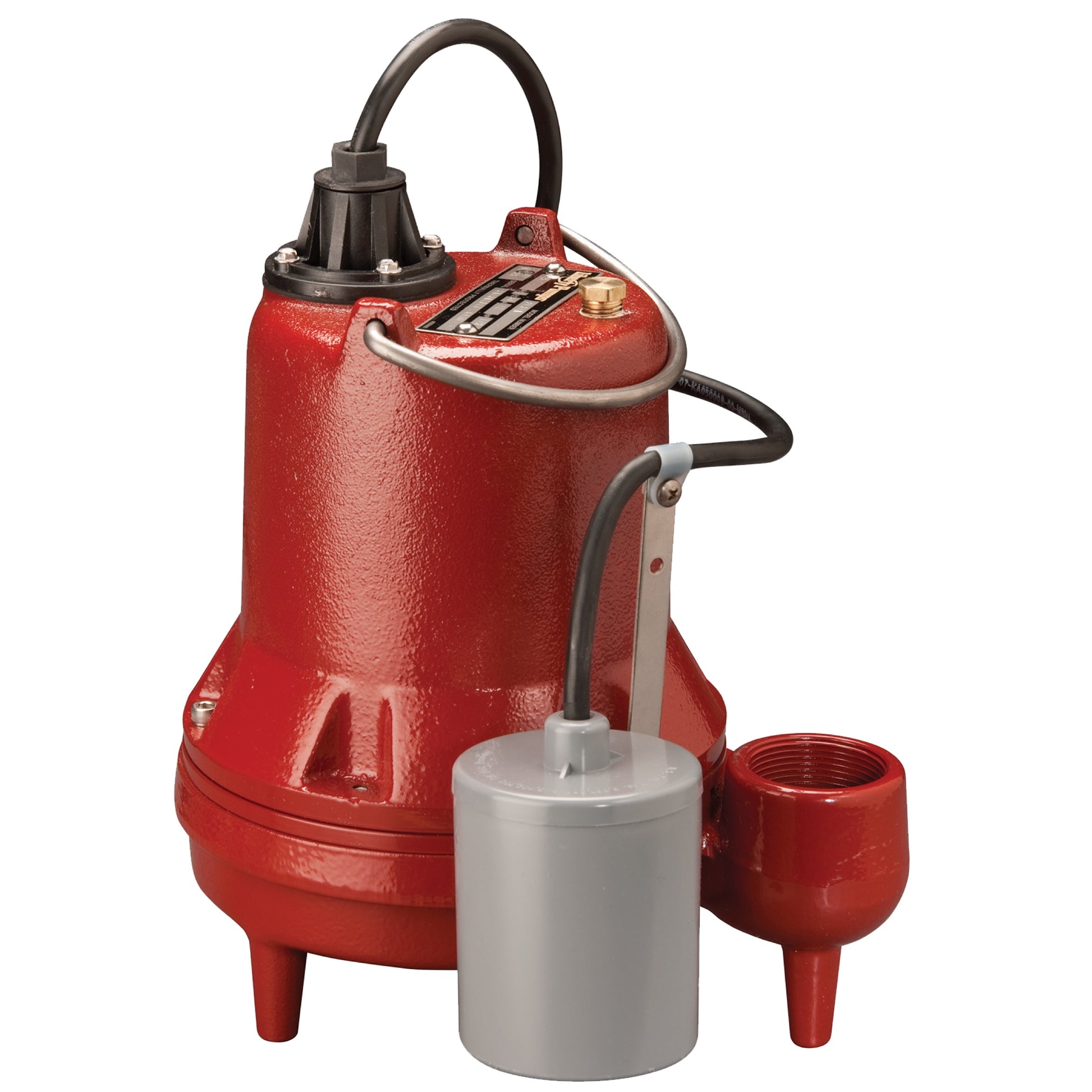

Liberty FL31A Cast Iron FL30-Series Submersible Low Head Effluent Pump (1/3 HP, Single Phase, 115V, Automatic, 10' Cord)

The Liberty FL31A Cast Iron FL30-Series Submersible Low Head Effluent Pump line is specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. Designed and manufactured by Liberty Pumps, a trusted name in the industry for quality and reliability. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

1/3 hp
1-1/2" Discharge
3/4" Solids handling

Utilizing the same heavy-duty design style as Liberty Pumps LE-Series sewage pumps, the FL30-Series offers a true commercial-grade low-head effluent pump with 3/4" solids handling capability. The FL30 features heavy cast iron construction, epoxy powder coat finish, and quick-connect power cords in 10', 25', 35' and 50'.

Specifications:

• Operation:   Automatic - WAP - Wide Angle Float Switch with Piggyback Plug
• Voltage:  115V
• Motor:  1/3 HP, Single Phase
• Amps:  10.5
• Housing:  Cast Iron
• Impeller Material:  Vortex Style High Temperature Polymer
• Shaft:  Stainless Housing and BUNA-N Elastomers
• Discharge:  1-1/2" FNPT
• Maximum Head:  19'
• Cord:  10'
• Duty Cycle:  Continuous
• Temperature:  140°F (60°C) Intermittent 104°F (40°C) Continuous duty
• Max RPM:  1725
• Frequency:  60 Hz

Features:

• Vortex impeller, made of high temperature engineered polymer, permits passage of solids without clogging
• Cast iron construction with all stainless and brass fasteners
• 416 stainless steel rotor shaft
• Oil-filled, thermally protected motor
• Permanently lubricated ball bearings
• Unitized shaft seal
• 1-1/2" FNPT discharge
• Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor (25', 35', or 50' lengths optional)
