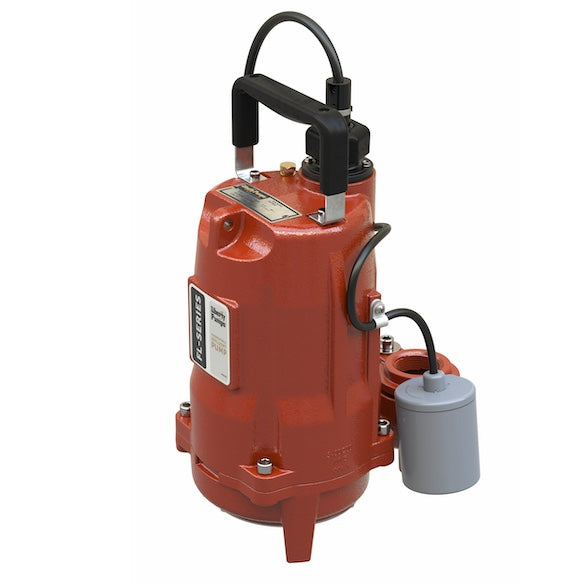

Liberty FL52A-3 Cast Iron FL50-Series Submersible Mid Range Effluent Pump (1/2 HP, Single Phase, 208-230V, Automatic, 35' Cord)

The Liberty FL52A-3 Cast Iron FL50-Series by Liberty Pumps is a mid-range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

1/2 hp
1-1/2" or 2" Discharge
3/4" Solids handling

Utilizing the same heavy-duty design style as Liberty Pumps LE-Series sewage pumps, the FL50-Series offers a true commercial-grade mid-range, higher head effluent pump with 3/4" solids handling capability. The FL50 features heavy cast iron construction, epoxy powder coat finish, and quick-connect power cords in 10', 25', 35' and 50'.

Specifications:

• Operation:   Automatic - WAP - Wide Angle Float Switch with Piggyback Plug
• Voltage:  208-230V
• Motor:  1/2 HP, Single Phase
• Amps:  6.5
• Housing:  Cast Iron
• Impeller Material:  Semi-open cast iron class 25
• Shaft:  Stainless
• Discharge:  1-1/2" or 2"
• Maximum Head:  55'
• Cord:  25'
• Duty Cycle:  Continuous
• Temperature:  140°F (60°C) Intermittent 104°F (40°C) Continuous duty
• RPM:  3450
• Frequency:  60 Hz

Features:

• Semi-open impeller permits
  passage of solids without clogging
• Heavy-duty iron construction
• Stainless steel fasteners
• Stainless steel rotor shaft
• Permanently lubricated upper and
  lower ball bearings
• Oil-filled hermetically sealed motor
  with thermal overload protection
• Unitized carbon ceramic shaft seal
• Dual-sized discharge flange:
  1-1/2" or 2"
• Quick-connect power cord in
  10' standard length (25', 35' and 50'
  optional lengths available on
  certain models)
