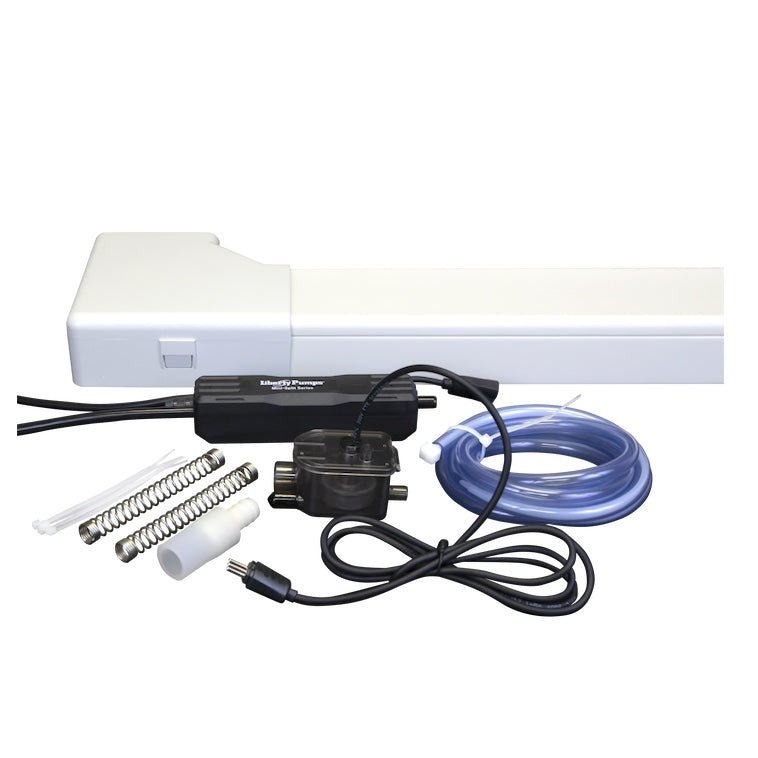

Liberty LCU-MS2 LCU-Series Mini-Split Condensate Pump (115/230V, 60HZ, w/ Line Cover Kit)

The Liberty LCU-MS series is for removal of condensate from wall mount, ductless mini-split air conditioners up to 23,500 Btu (7 kW), fan coils, and suspended ceiling air conditioners. The LCU-MS Series features quiet operation, solid-state switch technology, and a clear reservoir for easy visual inspection. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Voltage:  115 / 230V

Thermal Protection: 176°F (80°C)

Maximum Water Temperature:  140°F (60°C)

Ambient Temperature Range: 32°F - 122°F (0°C - 50°C)

Frequency:  60 Hz

Amps:  0.19

Features:

• Quiet operation
• Solid-state switch technology
• Normally-closed relay rated at 3A resistive - 250V alarm
• Adhesive hook and loop tape, double-sided foam tape, and zip ties are supplied to secure pump and reservoir
• 5/16" (7.9mm) pump discharge outlet
• 5' (1.5m) power cable, communication cable, high water safety switch cable, hose tubing

Standard Applications:

• Air Conditioners
• Fan Coils


Line Cover Kit:

• Decorative line set cover with 90° elbow
• Provides space to install pump, reservoir, wiring, and hoses
• Ceiling plate included
• Right or left-side installation Line Cover Kit Features
• Air conditioner trim and bracket
• Easy access to pump
• Cable ties to secure line set
• Reservoir mounts in the 90° elbow (must be level)
