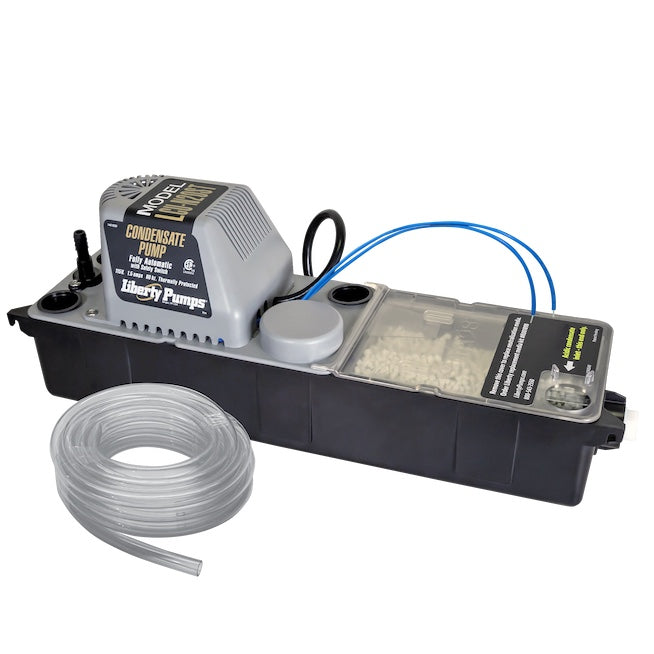

Liberty LCU-N220ST LCU-Series Neutralizing Condensate Pump (230V Automatic w/ Safety Switch and 20' Tubing Kit)

For neutralization and removal of acidic condensate produced by high-efficiency combustion equipment. When not neutralized, acidic condensate has the potential to harm the environment and any plumbing it comes in contact with due to its acidic nature.. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Operation:  Automatic

Voltage:  230V

Motor:  1/30 HP

Shaft Material:  Stainless Steel

Maximum Head:  20'

Maximum Temperature:  150°F (60°C)

Frequency:  60 Hz

Amps:  0.7

Manufacturer Information:

Rated for acidic condensate from up to 500,000 BTUs of appliance input from condensing boilers/furnaces as well as non-acidic condensate from A/C equipment, ice machines, dehumidifiers and other applications requiring condensate removal. The unit is designed to accept acidic and non-acidic condensate. Separate inlets are provided for standard (non-acidic) inputs that will help extend the life of the neutralizing media when not required.

Benefits:

• Prevents expensive repairs due to corroding drains and sewer systems
• Neutralized condensate is environmentally safer compared to acidic condensate
• Neutralizer media is contained within a cartridge to make replacing used media hassle-free
• Smaller magnesium oxide pellets offer faster neutralization of high PH water over larger size media

Features:

• High impact ABS tank
• Wall mounts
• Three 1" standard condensate inlet holes
• 3/8" O.D. barbed and threaded discharge connection for neutralized condensate
• One 1" hole and a 3/4" NPT inlet for acidic condensate
• Removable check valve
• Stainless-steel shaft
• 6' Power cord with ground
• Thermally protected
• Fully automatic
• Quiet operation
• Noise/vibration isolation pads pre-installed on tank
• Built-in overflow safety switch
• Includes 20' of tubing
• Pellet media is a granular form of magnesium oxide 5/16" - 3/8" (8-10 mm)

Acidic Applications:

• High efficiency furnaces
• High efficiency boilers
• High efficiency hot water heaters
• Other acidic condensate generating applications

Standard Applications:

• AC equipment
• Ice machines
• Drinking fountains
• Dehumidifiers
• Other applications requiring condensate removal
