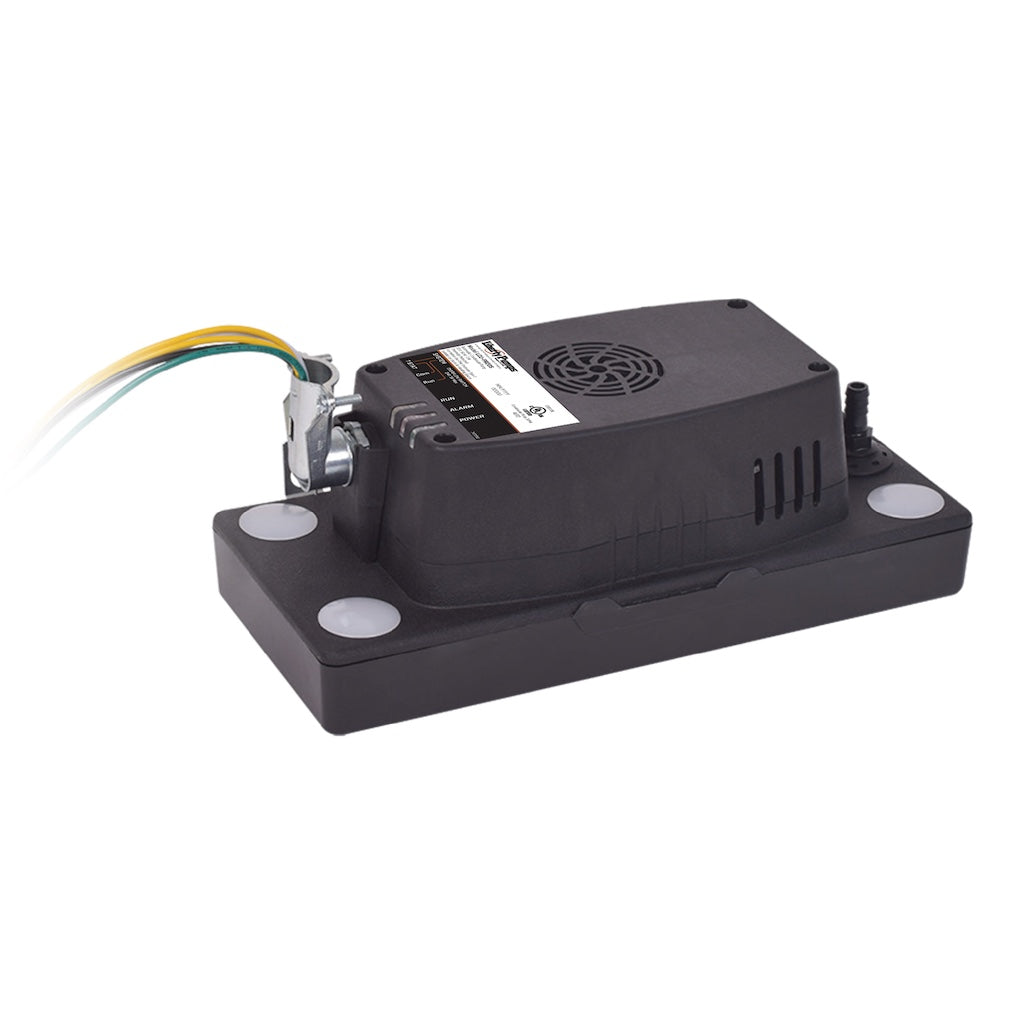

Liberty LCU-PR220S LCU-Series Plenum Rated Condensate Pump (230V w/ Safety Switch)

The Liberty LCU-PR series is designed for removal of condensate from air conditioning, refrigeration, and dehumidification equipment installed in air-handling and plenum applications having limited space.
The LCU-PR meets UL Standard 2043 for plenum applications. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Voltage:  230V

Shaft Material:  Stainless Steel

Maximum Head:  22'

Maximum Temperature:  160°F

Max Continuous Duty Temperature: 140°F

Frequency:  60 Hz

Amps:  1.0

Features:

• Plenum rated
• Indicator lights
• Overflow safety switch
• Four 3/4" PVC (1.05" OD) inlets
• Vibration dampening feet and motor mounts
• Meets UL Standard 2043
• Fitting accepts 1/2" flexible conduit
• Flying leads
• 3/8" Barbed fitting with integrated check valve
• Up to 125 VAC, 5A or 250 VAC, 3A
• Normally closed

Standard Applications:

• Air Conditioners
• Dehumidifiers
