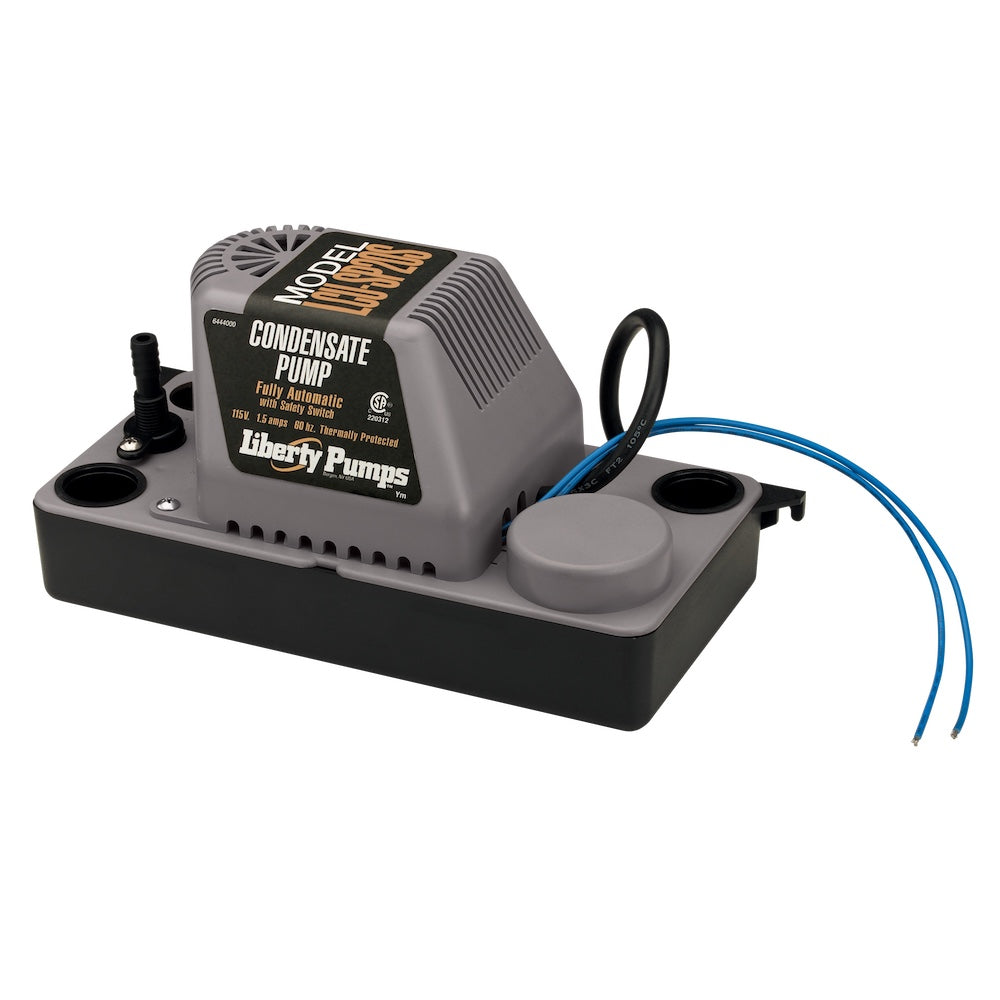

Liberty LCU-SP220S LCU-Series Condensate Pump (230V, Shallow Pan, Automatic w/ Safety Switch, 20' Head)

The new LCU-Series Condensate Pumps from Liberty are designed to handle removal of condensate from high efficiency furnaces, A/C equipment, dehumidifiers, ice machines and other applications producing condensate. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Operation:  Automatic

Voltage:  230V

Motor:  1/30 HP

Shaft Material:  Stainless Steel

Maximum Head:  20'

Maximum Temperature:  150°F (60°C) 50% Duty Cycle

Frequency:  60 Hz

Amps:  0.7

Manufacturer Information:

For removal of condensate from high efficiency furnaces, A/C equipment, ice machines, drinking fountains, beverage machines, dehumidifiers, and other applications requiring condensate removal. Features include a corrosion-resistant stainless steel shaft, high-impact ABS tank and fully automatic operation.

Features:

• High impact ABS tank
• Visual bubble level
• Wall mounts
• Four 1" intake holes
• 3/8" O.D. outlet
• Barbed discharge connection
• Removable check valve
• Stainless steel shaft
• 6' Power cord with ground
• Thermally protected
• Fully automatic
• Quiet operation
• Models with an “S” include built-in safety switch
• Models with a “T” include 20' of tubing
• Isolation pads pre-installed on tank


Applications:

• Furnaces
• A/C Equipment
• Dehumidifiers
• Ice Machines
• Drinking Fountain
• Other applications requiring condensate removal
