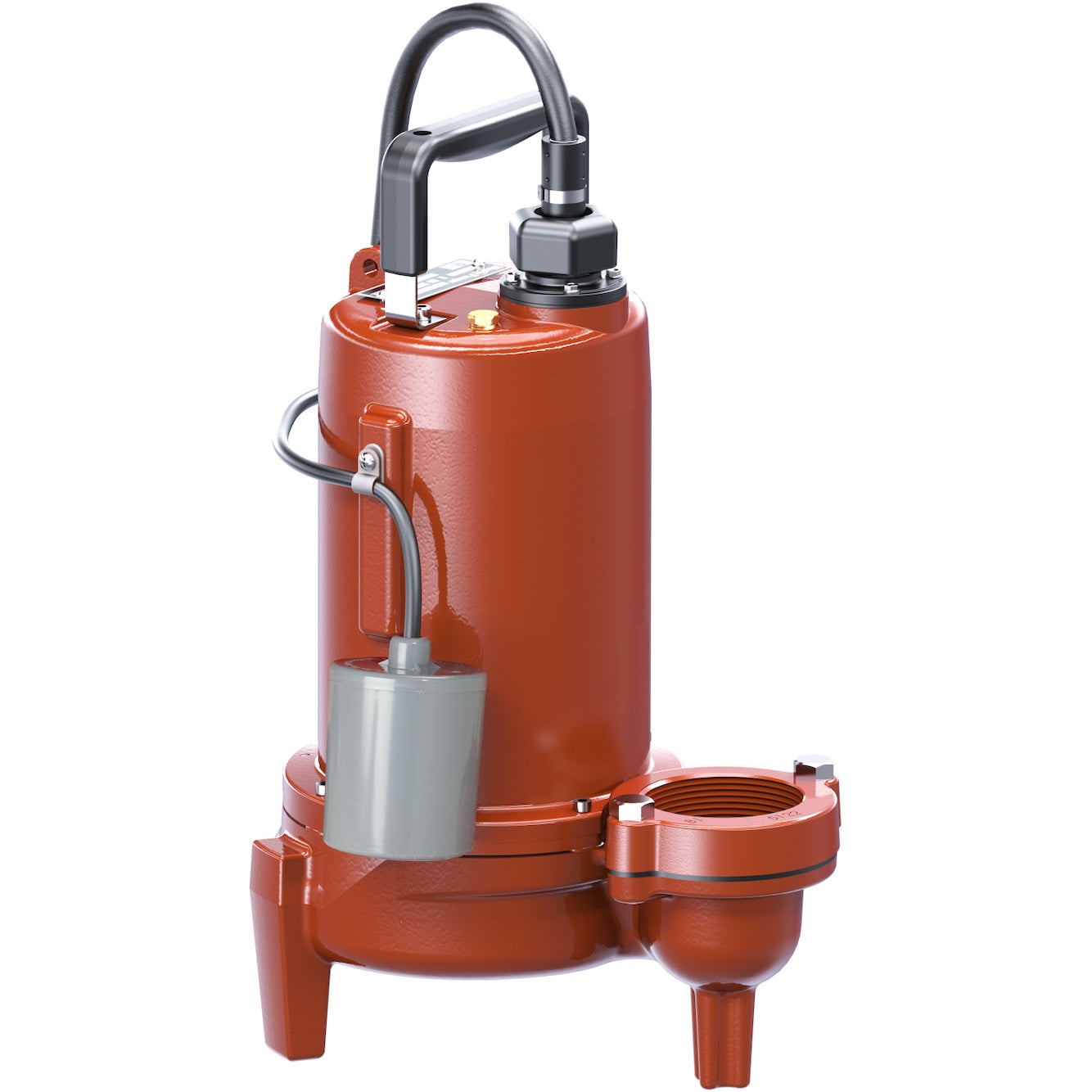

Liberty LE71A2-2 LE70-Series Cast Iron Submersible Sewage Pump (3/4 HP, Single Phase, 115V, Automatic, 25' Cord, 2" Flange)

The Liberty LE71A2-2 LE70-Series Cast Iron Submersible Sewage Pump's quick-connect power cord and ability to handle solids up to 2" are a perfect fit for residential and light commercial applications. Designed and manufactured by Liberty Pumps, a trusted name in the industry for quality and reliability. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Liberty Pumps LE70-Series is a 3/4 hp sewage pump with 2" solids handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish, stainless steel fasteners and rotor shaft, the LE70 is designed for durability. Its Quick-connect cord design allows for easy interchange of power cords in 10', 25' and 35' lengths. Available in 2" or 3" discharge configurations and a wide range of voltages.

Specifications:

Operation:  Automatic

Voltage:  115V

Motor:  3/4 HP, Single Phase

Amps:  12

Housing:  Cast Iron

Impeller: 2 Vane Semi-Open - Cast Iron

Shaft:  Stainless Steel

Discharge:  2" Flange

Maximum Head:  28'

Cord:  25'

Duty Cycle:  Continuous

Temperature:  140°F (60°C) Intermittent 104°F (40°C) Continuous duty

Max RPM:  1725

Frequency:  60 Hz

Weight:  67 lbs

Liberty Pumps LE70-Series Features:

• Rugged 2 vane, semi-open cast iron impellers
• Cast iron housings and volute with all stainless and brass fasteners
• 416 stainless steel rotor shaft
• Oil-filled, hermetically sealed motors
• Built-in thermal protection on single-phase models
• 2" or 3" flanged discharge
• Permanently lubricated upper and lower ball bearings
• Unitized shaft seals
• Single mechanical level float control with piggyback plug for manual bypass operation standard on single-phase automatic models
• Adjustable pumping range
• Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
• Automatic pumps an adjustable mechanical switch sealed in a PVC float, with a piggyback plug for manual bypass operation.
