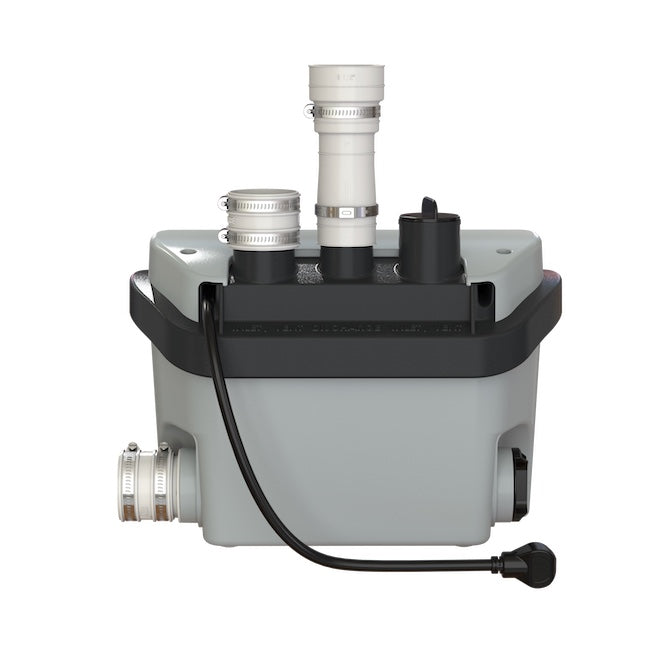

Liberty Model 406 Compact Drain Pump (1/6 HP, 115V, 60HZ, Fully Assembled)

The Liberty 406 is a compact, 1/6 HP appliance-grade automatic drain pump designed to remove gray wastewater from tight spaces below gravity lines. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Operation:  Quiet Automatic

Voltage:  115V

Motor:  1/6 HP

Maximum Temperature:  104°F (40°C) Continuous Duty - 140°F (60°C) Intermittent Duty (10 seconds on/5 seconds off)

Frequency:  60 Hz

Amps:  1.7

Inlet Connections: 1.5"

Features:

• Factory pre-assembled, ready to install
• Quiet automatic operation
• Short profile design for compact areas – only 10″ tall (base to top inlet flange)
• Float switch and pump serviceability via access cover
• Wet-end serviceability via removable pump “cartridge” – simple, 1/4 turn removal
• Rubber gasket for a superior gas-tight seal
• Floor-level side inlets, with integral check valve and couplings included for convenient plumbing
• Stepped discharge adapter – 1″, 1.25″, 1.5″ with integral check valve

Applications:

• Bar sinks
• Laundry trays
• Dehumidifiers
• Utility sinks
• Gray wastewater drainage
• Showers
