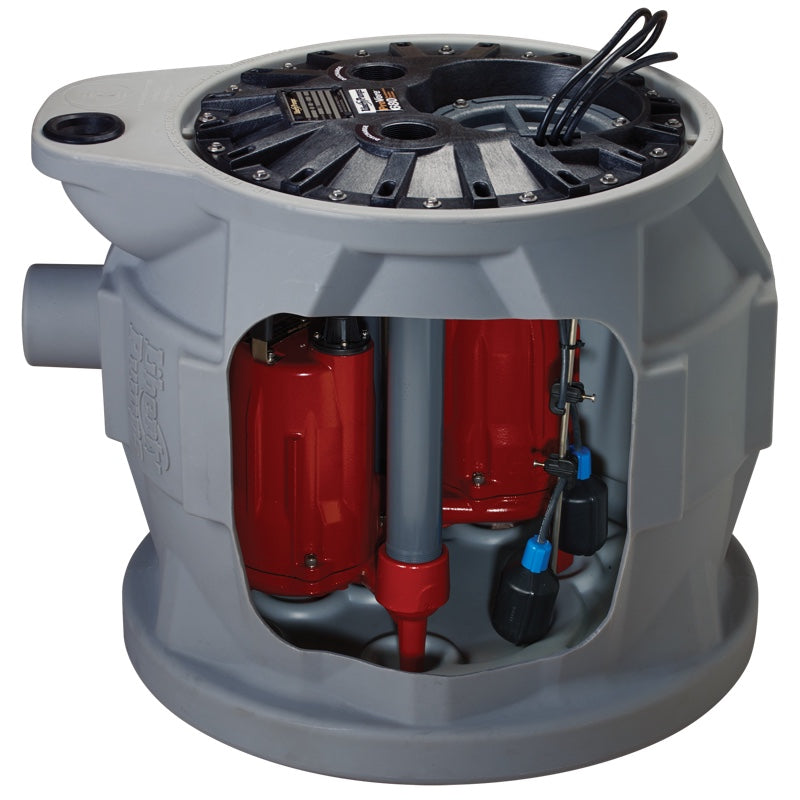

Liberty P682XPRG101 ProVore® 680 Duplex Grinder Package (Duplex, 1 HP, Single Phase, 115V, 10' Cord, PDC-115 Indoor Controller)

The Liberty P682XPRG101 ProVore® 680 Duplex Grinder Package is equipped with two pumps to ensure uninterrupted service. The compact design is perfect for residential and light commercial applications. This model is 115V and includes the PDC-115 indoor controller. Designed and manufactured by Liberty Pumps, a trusted name in the industry for quality and reliability. Please contact a member of our sales or service team for assistance in selecting the correct system for your needs!

Compact duplex system - designed for residential and light commercial sewage applications. Perfect for basement bathroom additions and remodeling projects. Available in 115V or 230V. Fully assembled from factory.

IAPMO Listed Basin

The Pro680XL basin is specifically designed to pass a 10' stack test and is IAPMO listed.

Specifications:

Voltage:  115V

Motor:  1 HP, Single Phase

Controller:  PDC-115 Indoor

Enclosure:  NEMA 1

Max Head:  50'

Cord:  10'

Capacity:  46 Gallons

Amps:  12

Discharge:  2"

Weight:  151 lbs

Features:

• Robust system features a compact heavy-duty polyethylene basin and cover
• Solids handling and ProVore® grinder models available
• 46 Gallon capacity
• System can be installed above or below floor level
• Two pumps provide uninterrupted service
• Easy access cover with QuickTree® technology – allows for quick float switch removal and servicing
• Heavy-duty integrated rubber gaskets on covers
• Secure 16-bolt cover standard on all models
• Passes 10' stack test


QuickTree® Information:

• QuickTree® technology allows easy access and removal of float switches without disturbing pump or plumbing
• Integrated rubber seals permanently attached to cover
• Unique cord seal technology integrated into the inspection cover
• Shallow basin design (24") for easier installation in difficult soil/bedrock locations
• Large 46 gallon capacity for longer pump cycles
• Integrally-molded torque stops secure the pump in its proper position
• Integrally-molded anti-flotation collar
• Durable polyethylene construction
• Completely assembled


PDC Duplex Control:

• Automatically alternates pump operation – equalizing wear and extending pump life
• Plug-in ready wiring for easy and quick installation (indoor model only)
• QuickTree® mounted float switches with Quick-connect at box (indoor model only)
• Green power indicator
• Green pump run indicators
• Audible and visual alarm
• 9-Volt back-up for alarm
• Receptacles are angled to accept standard or rightangled plugs
• Programmed automatic 6 hour run limiter protects against run-dry pump conditions
• NEMA 1 indoor or NEMA 4X outdoor options available
