Little Giant

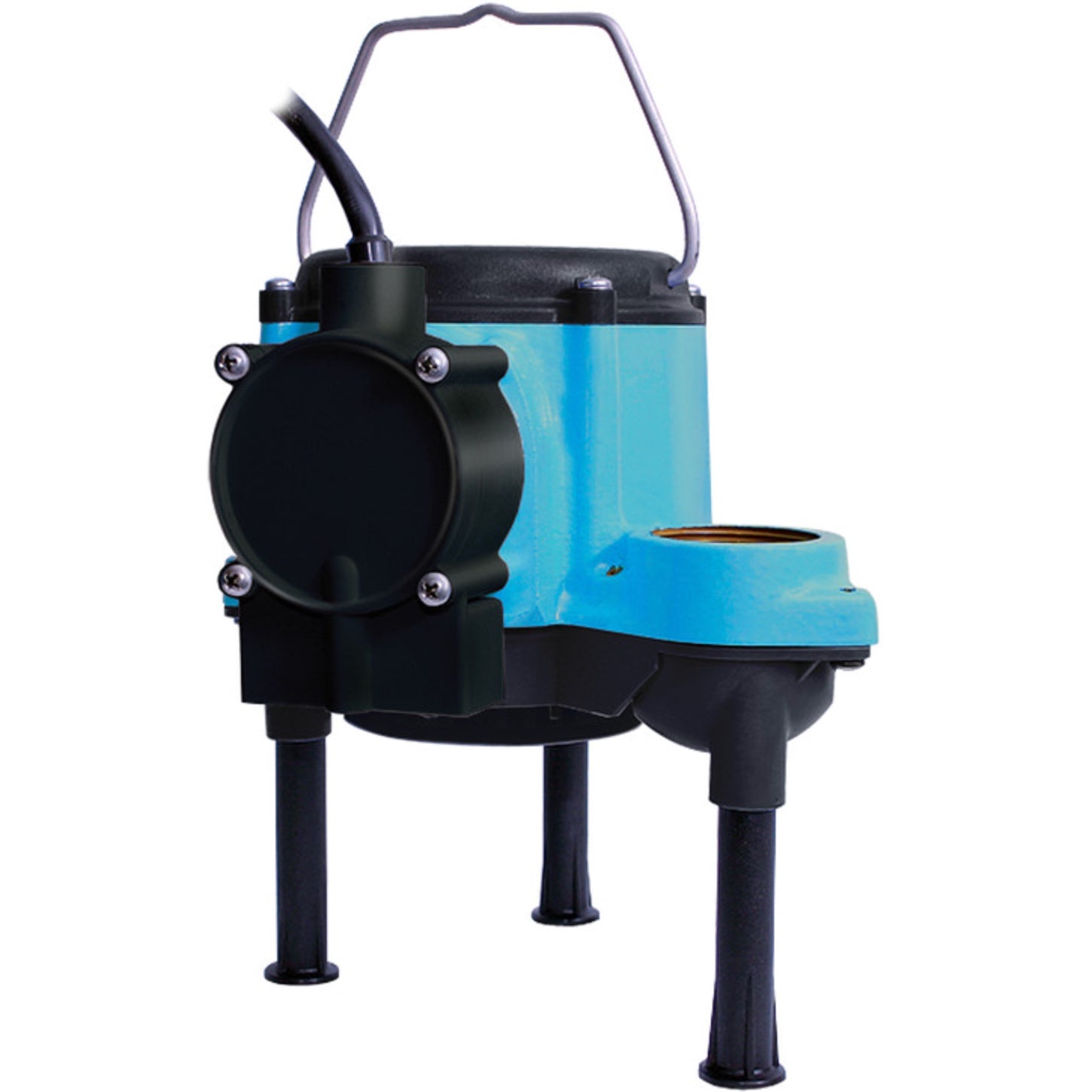

Little Giant 6-CIA 6 Series Sump Pump - 506166 (1/3 HP, 230V, 10' Cord)**Clearance**

Little Giant 6-CIA 6 Series Sump Pump - 506166 (1/3 HP, 230V, 10' Cord)**Clearance**

Regular price $149.00 USD
Regular price $694.00 USD Sale price $149.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:506166

**5 in stock at Clearance Price**

Little Giant 6-CIA 6 Series Sump Pump - 506166 (1/3 HP, 230V, 10' Cord)

The Little Giant 6 Series is a basement sump pump used for water transfer and dewatering.

Ratings

HP 1/3 hp
Frequency 50Hz/60Hz
Phase Single-Phase
Amps - Full Load 4.5 A
Amps - Starting 7.2 A
Full Load Watts 720 W
Volts 230 VAC
Cord Length 10 ft
Motor Type Submersible
Continuous Duty Yes
Thermal Overload Protection Yes
Protection [IP] IP68
Maximum Flow Rate - 60Hz 46 gpm / 2760 gph
Minimum Flow Rate - 60Hz 10 gpm / 600 gph
Max Flow Rate - 50Hz 40 gpm / 2400 gph
Shut-Off 18 ft
Minimum Head - 60Hz 4.27 ft
Shut Off Height - 60Hz 18 ft
Stages 1
Max Solid Handling Size 0.13 "
Switch Type Automatic / Diaphragm Switch
Motor Cooling Oil

Liquid

Max Fluid Temperature 140 °F

Materials of Construction

Pump Base Material Plastic
Pump Body Material Cast Iron
Pump Volute Material Polypropylene
Impeller Type Non-Clog
Impeller Material Nylon
Motor Shaft End - Material 420 Stainless Steel
Intake Screen Material Nylon
Top Bearing Type Sleeve
Seal Material Carbon/Ceramic, Nitrile
Seal Type Mechanical Seal

Installation

Discharge Type Threaded - FNPT
Discharge 1.5 "
Product Length 9.5 "
Product Width 7.5 "
Product Height 6 "
Pump Length 9.5 "
Product Weight 18 lb
Product Weight w/ Pack 18.5 lb
Carton Length 10 "
Carton Width 10 "
Carton Height 9 "
Off Level - Range 1" - 4"
On Level - Range 7" - 10"

Other

Electrical Agency Approvals cCSAus
