Myers 2NFL51-12-P4-02 Rustler Series 4" Submersible Pump (1/2 HP, 115V, Single Phase, 2-Wire, 8 Stage, 10-12 GPM)

Myers 2NFL51-12-P4-02 Rustler Series 4" Submersible Pump (1/2 HP, 115V, Single Phase, 2-Wire, 8 Stage, 10-12 GPM)

$494.00 USD
$1,759.00 USD $494.00 USD
Sale Sold out
Shipping calculated at checkout.

2NFL51-12-P4-02

**Only 1 in stock at Clearance Price**

Myers 2NFL51-12-P4-02 Rustler Series 4" Submersible Pump is constructed of stainless steel to maximum longevity. Self-lubricating impellers ensure consistent performance and reliability. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.

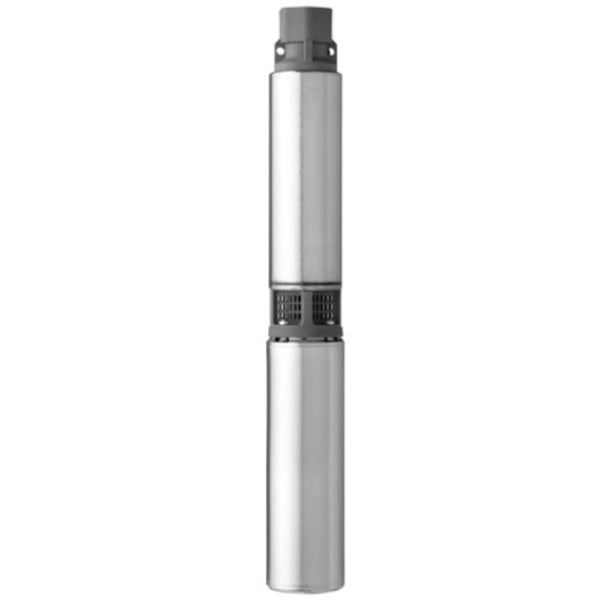

**Picture is stock photo and may not match exactly**

Motor:  1/2 HP, 115V, Single Phase

Stages:  8

Operating Flow Rate:  10-12 GPM - See Flow Chart

Length:  23"

Discharge:  1-1/4" NPT

Precision-engineered, corrosion resistant pumps in 5, 7/8, 10/12, 20, and 30 GPM deliver efficient, dependable performance even in rough, aggressive water. Heads to over 650 feet and capacities to 45 GPM. Built to deliver long-term, trouble-free service. These pumps feature the proven SignaSeal™ staging system. Floating impeller design resists sand and reduces sand locking.

Specifications:

  • Shell: Stainless steel. Diameter: 3-7/8”.
  • Discharge: Fiberglass-reinforced thermoplastic.
  • Discharge Bearing: Nylatron®.
  • Intermediate Bearing: (On larger units) polycarbonate, nitrile rubber and stainless steel.
  • Impellers: Acetal.
  • Diffusers: Polycarbonate.
  • Suction Caps: Polycarbonate with stainless steel insert.
  • Thrust Pads: Proprietary spec.
  • Shaft and Coupling: Stainless steel.
  • Intake: Fiberglass reinforced thermoplastic.
  • Intake Screen: Polypropylene.
  • Cable Guard: Stainless steel.
  • Check Valve: Spring loaded check valve.
  • Agency Listings: CSA

Applications:

Water systems for residential, industrial, commercial, multiple housing, and farm use

Features:

  • Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry.
  • Discharge: Corrosion resistant fiberglass reinforced thermoplastic for durability in aggressive water. Large octagon wrench area for ease of installation.
  • Discharge Bearing: Exclusive self lubricating Nylatron bearing resists wear from sand.
  • Intake: Corrosion resistant fiberglassreinforced thermoplastic for durability in aggressive water.
  • Shaft: Positive drive from 7/16” hexagonal heavy duty 300 grade stainless steel.
  • Coupling: Stainless steel press fit to pump shaft. Couples to all standard NEMA motors.
  • Shell: Crimped shell.
  • Hardware: All screws, washers and nuts are corrosion resistant 300 grade stainless steel.
  • Check Valve: Spring loaded check valve.
  • Cable Guard: Corrosion resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well.
  • Intake Screen: Molded-in screen.
  • Pentek® XE Series™ Motor: 2 and 3-wire NEMA standard all stainless construction water-filled motors

NOTE: Motor, Control Box or Magnetic Starter must be ordered separately, if ordering pump end only. Discharge NPT is 1-1/4".

*Length and Weight are approximate. **For 10 GPM, 15 GPM and 20 GPM discharge is 1-1/4" NPT. ***For 30 GPM and 50 GPM discharge is 2" NPT. NOTE: On 2 HP and larger – Pump, Motor, Control Box or Magnetic Starter must be ordered separately. †Check Valve not included on 5 HP, 7-1/2 HP and 10 HP models. Check Valve not included on 50 GPM models. TrimLine™ version maximum outside diameter is 3-3/4". Standard version maximum outside diameter on all models is 3-7/8"
