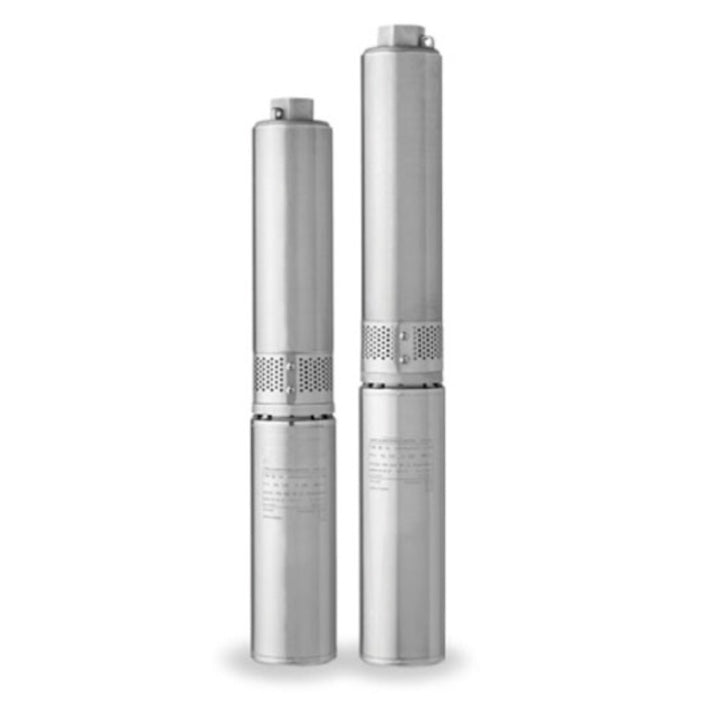

Myers 2ST52-12PLUS-P4-2 Predator Plus Series Stainless Steel 4" Submersible Well Pump (1/2 HP, 230V, Single Phase, 2-Wire, 8 Stage, 10-12 GPM) ** Clearance **

Myers 2ST52-12PLUS-P4-2 Predator Plus Series Stainless Steel 4" Submersible Well Pump (1/2 HP, 230V, Single Phase, 2-Wire, 8 Stage, 10-12 GPM) ** Clearance **

$592.00 USD
$2,240.00 USD $592.00 USD
Sale Sold out
Shipping calculated at checkout.

2ST52-12PLUS-P4-2

**Only 1 in stock at Clearance Price**

The Myers 2ST52-12PLUS-P4-2 Predator Plus Series Stainless Steel 4" Submersible Well Pump is constructed of stainless steel to maximum longevity. Self-lubricating impellers ensure consistent performance and reliability. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.

Motor:  1/2 HP, 230V, Single Phase

Stages:  8

Operating Flow Rate:  10-12 GPM - See Flow Chart

Length:  23"

Discharge:  1-1/4" NPT

The Predator Plus Series 4” submersible pumps have a proven track record for reliability and performance, and are the preferred brand by many industry professionals. Stainless steel construction and self-lubricating impellers provide reliable performance under the most demanding conditions. The Predator Plus also features the Pentek® XE Series, high-thrust motor for increased efficiency and extended service life.

Precision engineered, rugged pumps deliver efficient, dependable performance even in rough, aggressive water. Heads to 1,950 feet and capacities to 65 GPM. Built to deliver long term, trouble free service. Floating impeller design resists sand and reduces sand locking. These pumps feature the proven SignaSeal™ staging system.

Specifications:

  • Shell: Stainless steel. Diameter: 3-7/8”.
  • Discharge: Stainless steel.
  • Discharge Bearing: Nylatron®.
  • Intermediate Bearing: (On larger units) polycarbonate, nitrile rubber and stainless steel.
  • Impellers: Acetal†.
  • Diffusers: Polycarbonate.
  • Suction Caps: Polycarbonate with stainless steel insert.
  • Thrust Pads: Proprietary specifications.
  • Shaft and Coupling: Stainless steel.
  • Intake: Stainless steel.
  • Intake Screen: Polypropylene.
  • Cable Guard: Stainless steel.
  • Check Valve: Acetal.
  • Agency Listings: CSA.

Applications:

Water systems for residential, industrial, commercial, multiple housing, and farm use

Features:

  • Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock up and running dry.
  • Discharge: Corrosion resistant 300 grade stainless steel for durability in aggressive water. Large octagon wrench area for ease of installation.
  • Discharge Bearing: Self lubricating Nylatron bearing resists wear from sand. Intake: Corrosion resistant 300 grade stainless steel for durability in aggressive water.
  • Shaft: Positive drive from 7/16” hexagonal heavy-duty 300 grade stainless steel.
  • Coupling: Stainless steel press fit to pump shaft. Couples to all standard NEMA motors.
  • Shell: Highest grade, heavy walled corrosion resistant stainless steel. Threaded for easy servicing.
  • Hardware: All screws, washers and nuts are corrosion resistant 300 grade stainless steel.
  • Check Valve†: Durable internal spring-loaded check valve.
  • Cable Guard: Corrosion resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well.
  • Intake Screen: Corrosion proof.
  • Pentek XE Series Motor: 2 and 3 wire NEMA standard all stainless construction water filled motors.

NOTE: Motor, Control Box or Magnetic Starter must be ordered separately, if ordering pump end only. Discharge NPT is 1-1/4".

*Length and Weight are approximate. **For 10 GPM, 15 GPM and 20 GPM discharge is 1-1/4" NPT. ***For 30 GPM and 50 GPM discharge is 2" NPT. NOTE: On 2 HP and larger – Pump, Motor, Control Box or Magnetic Starter must be ordered separately. †Check Valve not included on 5 HP, 7-1/2 HP and 10 HP models. Check Valve not included on 50 GPM models. TrimLine™ version maximum outside diameter is 3-3/4". Standard version maximum outside diameter on all models is 3-7/8"
