Myers CTJ10B 1 HP Cast Iron Centrifugal Pump (1 HP, Single Phase, 115/230V, Bronze Impeller)

Myers CTJ10B 1 HP Bronze Impeller Cast Iron Centrifugal Pump's rugged cast iron casing ensures superior durability to the water or sprinkler system for your house, farm or industrial application. Pentair tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.

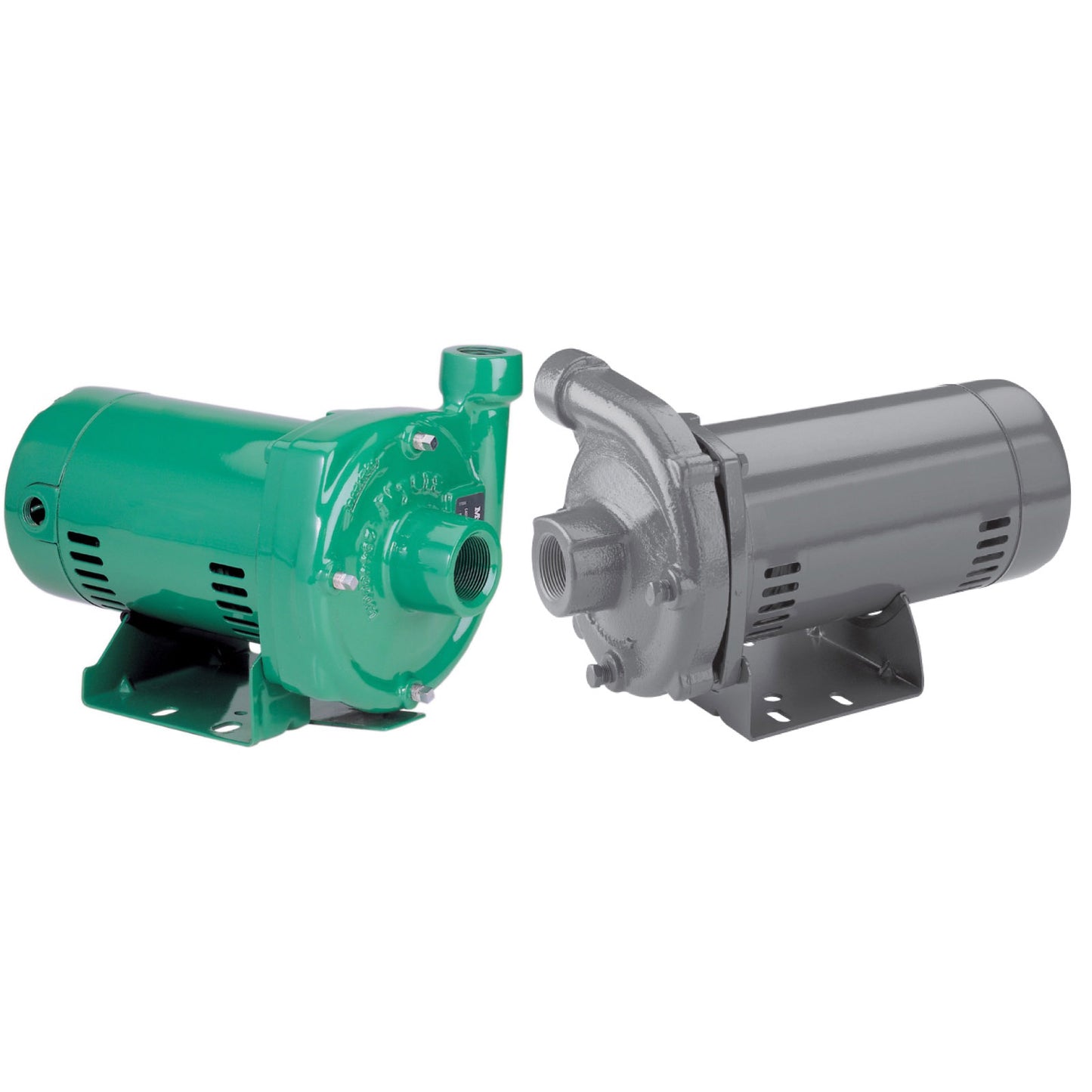

Picture shows CT series and updated CTJ series pumps - Front case is turned 90 Degrees on updated CTJ series pumps. Please contact customer service for assistance in selecting the correct pump for your needs.

Pump Casing Material:  Cast Iron

Voltage:  115/230V

Motor:  1 HP, Single Phase

Impeller:  Silicon Bronze

Ports:  1-1/4" NPT Suction x 1" NPT Discharge

Maximum Water Temperature:  140 Degrees F

Duty Cycle:  Continuous

Speed:  3500 rpm

Frequency:  60 Hz

The CTJ Series have a rugged cast iron construction and can be coupled with either a corrosion resistant Noryl, or a lead-free brass impeller.

• 1/2 through 2-1/2 HP – High head models, with heavy-duty motors, easy service design and four-position discharge.

• Drain Port – Provided for easy winterizing.
• High Head – Up to 150’ of head with capacities to 105 GPM.
• Easy Serviceability – All models include replaceable wear ring and feature back pull-out design.
• Noryl® Impellers – Abrasion-resistant for normal applications with working temperatures to 140°F.
• Silicon Bronze Impellers – Pumps equipped with shaft seals rated for temperatures to 225°F.

Series Specifications:

• Volute and Seal Plate: Close-grained cast iron. 
• Impellers: CTJ Series = Noryl®; CTB Series = silicon bronze. 
• Base Plate: 12 gauge stamped steel. 
• Motor Shaft: 300 series stainless steel. 
• Mechanical Seal: Carbon ceramic faces, BUNA N® cup and bellows.
