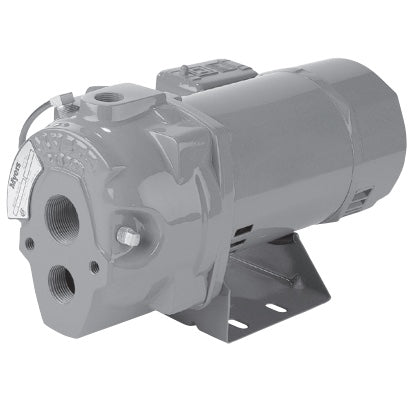

Myers HR50D HR Series Deep Well Jet Pump (1/2 HP, Single Phase, 115/230V)
Myers HR50D HR Series Deep Well Jet Pump (1/2 HP, Single Phase, 115/230V)
SKU:HR50D
Couldn't load pickup availability
The Myers HR50D HR Series Deep Well Jet Pump's rugged cast iron casing ensures superior durability to supply water for your house, farm or commercial and industrial needs. Pentair tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1/2 HP, Single Phase
Maximum Flow Rate: 11.5 GPM - See Chart
Flow Rate at 10' Lift and 40 PSI: 9 GPM
Shutoff PSI: 70
Ports: 1" NPT Suction x 1" NPT Discharge
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
HR Series Jet Pumps provide reliable service for many residential homes and farms, as well as commercial and industrial applications.
- Durable machined heavy-duty construction pump body provides long product life
- Precision-molded impellers and diffuser provide smooth, balanced performance and efficiency
- High quality proven pressure switch with adjustable on/off pressure settings, 20 PSI differential
- Heavy-duty motor with double ball bearing design and voltage selection device
- Mechanical shaft seal with ceramic face and stainless steel construction for long seal life
Specifications:
- Cast iron pump case.
- Dual compartment, 115/230 Volt double-ball bearing motor with voltage selector switch.
- Priming screen.
- Diffuser with stainless steel wear ring.
- Square D pressure switch.
