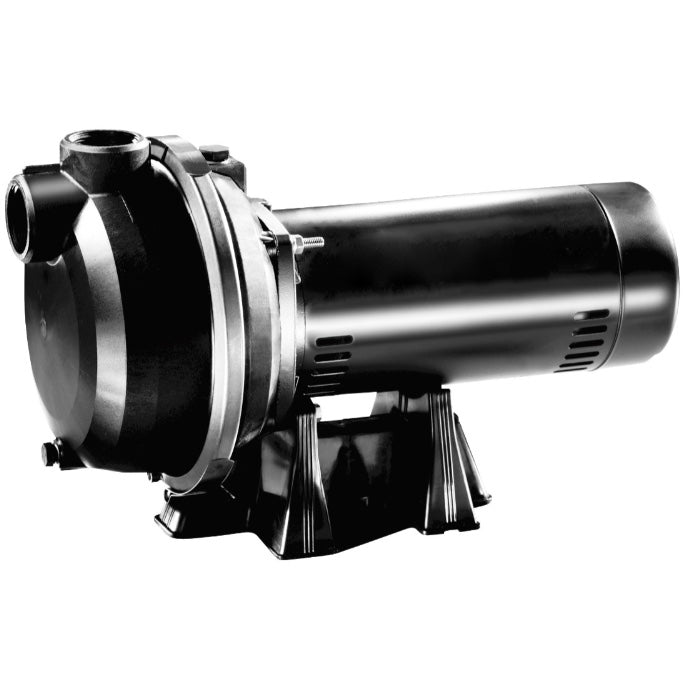

Myers PQP10 PQP Series Centrifugal Sprinkler Pump (1 HP, Single Phase, 115/230V, ODP)
Myers PQP10 PQP Series Centrifugal Sprinkler Pump (1 HP, Single Phase, 115/230V, ODP)
SKU:PQP10
Couldn't load pickup availability
Myers PQP10 PQP Series Centrifugal Sprinkler Pump is the preferred option for turf sprinkler systems and water transfer for residential and light commercial. Built with a fiberglass-reinforced engineered composite for durability and polycarbonate impeller for longevity. This 1 HP pump and motor combination has a maximum flow rate of 53 gpm. Designed and manufactured by Myers, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Fiberglass-Reinforced Engineered Composite
Voltage: 115/230V
Motor: 1 HP, Single Phase, ODP
Impeller Material: Polycarbonate
Ports: 1-1/2" Suction x 1-1/2" Discharge NPT
Maximum Flow Rate: 53 gpm - See Performance Chart
Duty Cycle: Continuous
Frequency: 60 Hz
Quick priming PQP series pumps feature lightweight construction in a self-priming design. These models offer a stronger pump body with reinforcement ribs and also a new 2” suction that is designed for the professional pump contractor.
Features:
- Motor Sizes: 1, 1-1/2, 2 and 2-1/2 HP.
- Single Phase: 115/230V Dual Voltage, 60 Hz, ODP.
- Pump Body: Fiberglass reinforced, polypropylene pump body and seal plate that is lightweight and corrosion resistant while being exceptionally strong.
- Drain Port: Provided for easy winterization.
- Pump Base: Corrosion resistant composite.
- Easy Service: Easy serviceable back with pullout design.
- Motor: 2 compartment, square flange motor with thermal overload protection.
- Rapid Priming: Once pump body is filled with water.
- Pump Body: Fiberglass-reinforced engineered composite .
- Base: High-impact composite.
- Seal Plate: Fiberglass-reinforced engineered composite.
- Impeller: Polycarbonate.
- Diffuser: Polycarbonate.
- Shaft: Stainless steel.
- Clamp: Stainless steel.
Applications:
Turf sprinkling and water transfer for residential and light commercial.
