Pearl BLKP 10F1VS Constant Pressure Pump System (1 HP, Single Phase, 115/230V, 60Hz, 5-23GPM)
Pearl BLKP 10F1VS Constant Pressure Pump System (1 HP, Single Phase, 115/230V, 60Hz, 5-23GPM)
SKU:
Couldn't load pickup availability
The Pearl BLACKPEARL INTELLIGENT BOOSTING SYSTEM is an integrated booster and the future for residential and light commercial water. This revolutionary design is changing water pressure management, offering exceptional performance in a small package. Thanks to advanced engineering, BLACKPEARL uses state-of-the-art technology to ensure constant pressure while reducing noise, and energy consumption. The permanent magnet motor, the beating heart of BLACKPEARL, delivers power and energy efficiency. With compact dimensions, BLACKPEARL integrates easily into any environment, offering fast and intuitive installation without the use of special tools. Its self-priming capacity makes BLACKPEARL suitable for various applications, even when suction lift is required. The patented design of sealed opposed spring-loaded, replaces the tank’s functionalities. BLACKPEARL is the first constant pressure booster unit without a tank, so pre-charge is not needed. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by PD Water Systems, a trusted name in the industry.
Voltage: 115/230V
Motor: 1 HP, Single Phase
Maximum Head: 196' (85PSI)
Stages: 3
Suction: 1"
Discharge: 1"
Max Amp: 9.0/4.6

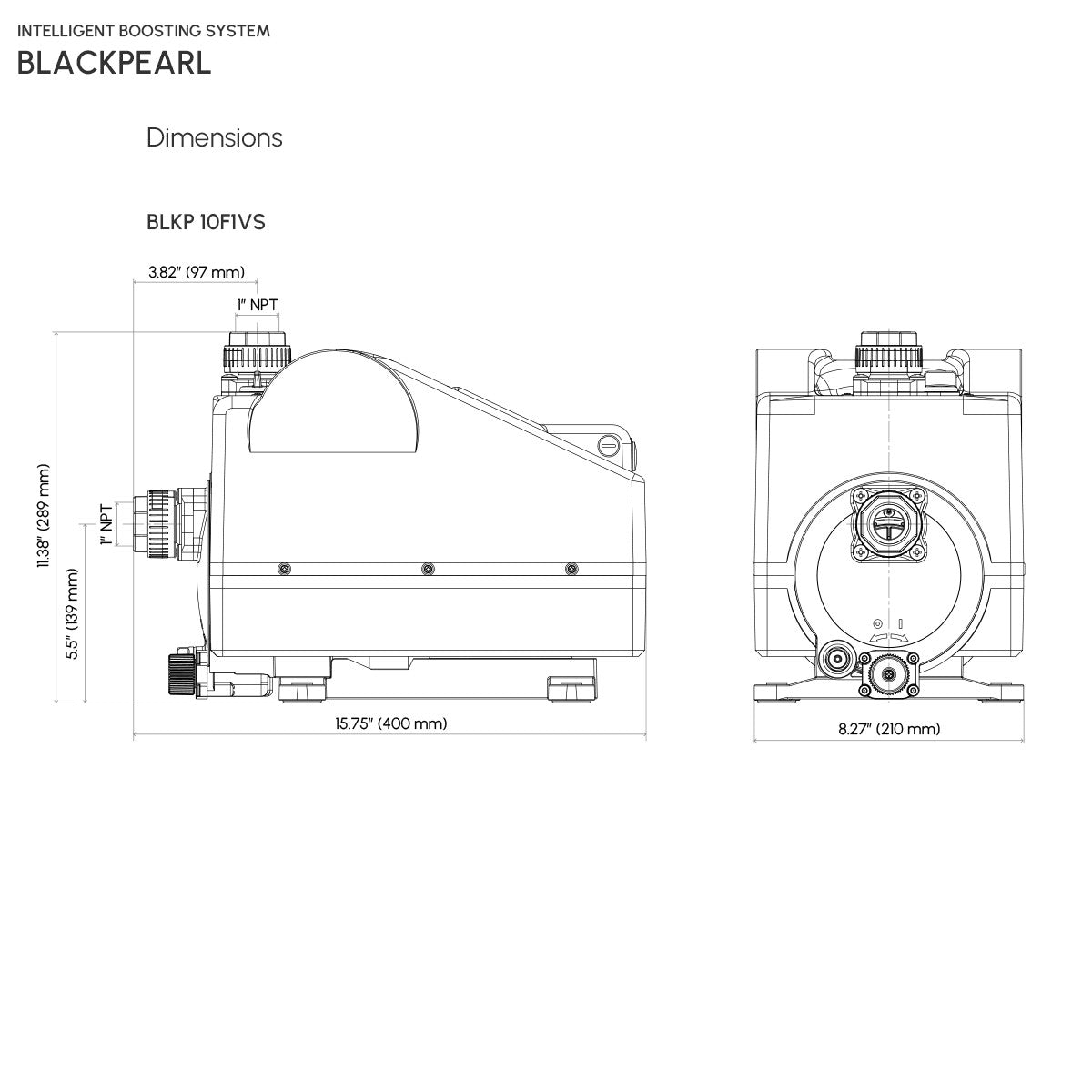

Length: 15.75"
Duty Cycle: Continuous
Multipurpose applications in the residential and industrial markets. Perfect for pressure boosting application and water transfer.

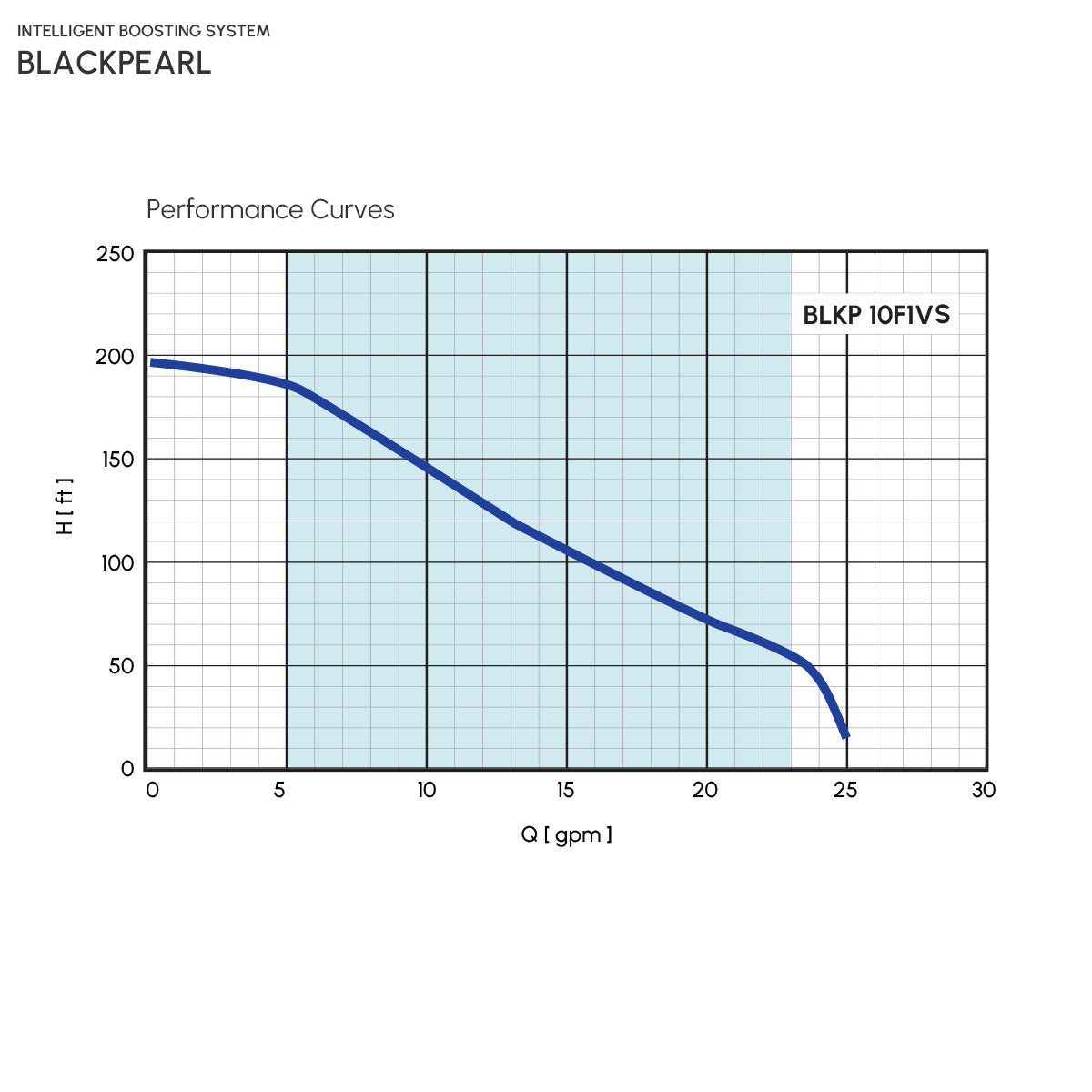

PERFORMANCE RANGE:
- Recommended range from 5 to 23 gpm.
- Head up to 196 ft. (85PSI)
APPLICATIONS:
- Residential, Industrial
- Equipment & Water Systems
- Constant Pressure Systems
FEATURES:
- Precision and durable plastic pump
- Permanent magnet motor
- Optimized fan for reduced noise and cooling
- Spring ram opposed device for anti-water hammer control
- Maintenance and precharge free (no pre-charged tank required)
- Patented designed system
- Ie5 efficiency
- Quick connect fittings
- Simple installation. No tools or even Teflon tape required.
- Compact & ultra quiet design 43 dBA
- Self-priming and NEMA 12 construction.
- Bluetooth app control for easy remote setup.
PUMPED LIQUID:
• Clear Water
OPERATING CONDITIONS:
• Liquid temperature from 41 °F to 113 °F
• Ambient temperature up to 41 °F to 122 °F
• Maximum working pressure: 120 psi
• Continuous duty
MOTOR:
• Permanent Magnet Motor
• Insulation Class IP65
• UL listed
QUICK-CONNECT FITTING:
• BLACKPEARL fittings are designed to allow you to install it by hand without the use of any special tools. Once you take it out of the package, simply connect it to the power supply and system piping.
CONTROLLED REMOTELY:
• Thanks to the Bluetooth® connection, you can control your system remotely, conveniently and intuitively via the BLACKPEARL app. Download it from the App Store or Google Play.
VOLTAGE AUTO-DETECTION:
• BLACKPEARL can be powered 115 or 230 V. Connect BLACKPEARL to your power supply,
and it will detect the input voltage automatically.
EASY TO USE AND INTUITIVE:
• The BLACKPEARL user interface provides simple and immediate parameter settings and
controls. All you have to do is set the working pressure.
