Pearl IKON 10F1VX2 Duplex Constant Pressure Pump System (1 HP, Single Phase, 115/230V, 60Hz, 11-37GPM)
Pearl IKON 10F1VX2 Duplex Constant Pressure Pump System (1 HP, Single Phase, 115/230V, 60Hz, 11-37GPM)
SKU:
Couldn't load pickup availability

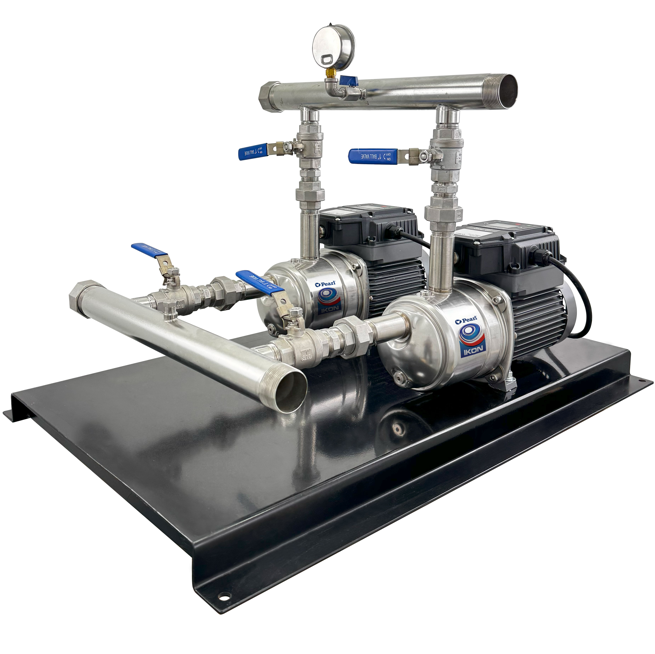

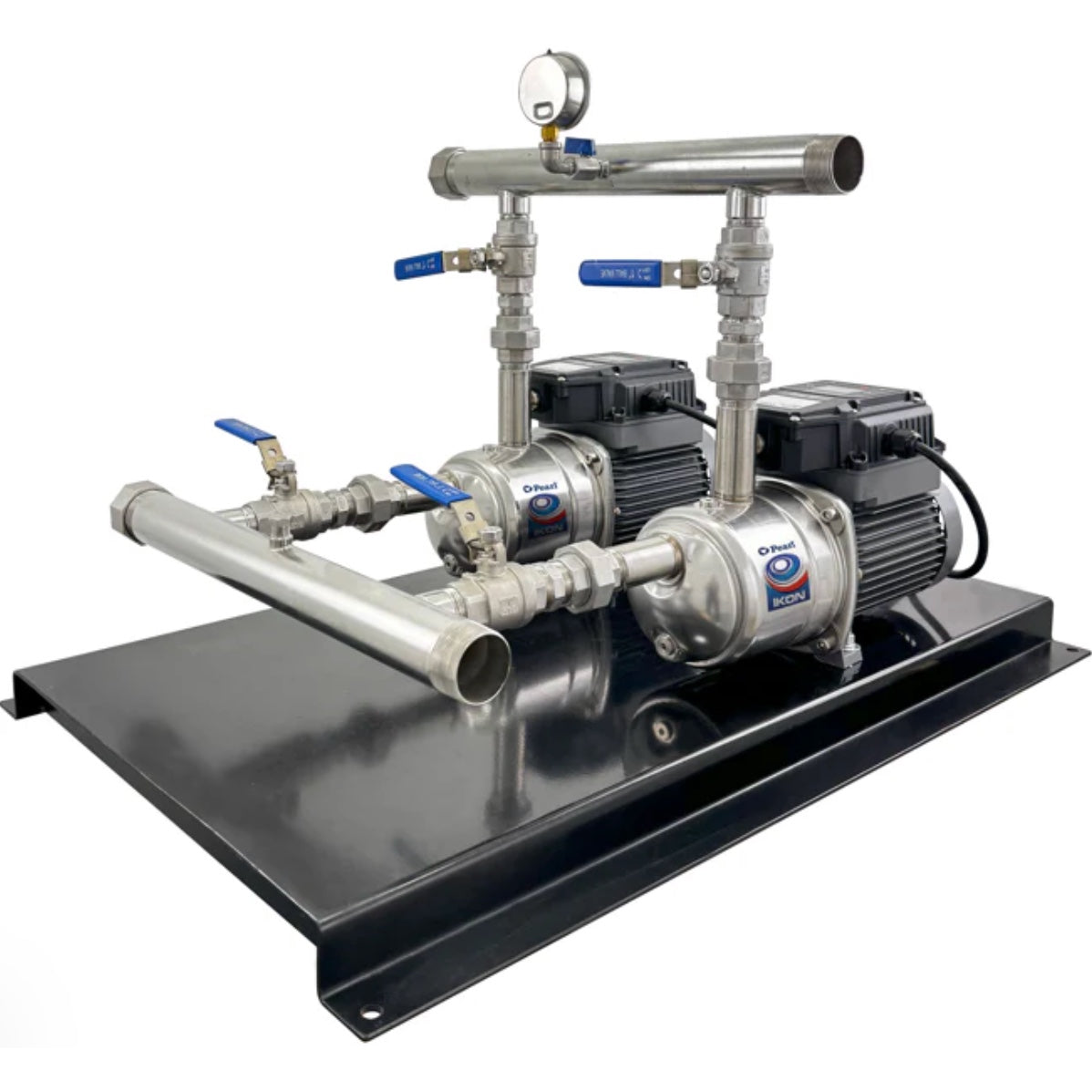

The Pearl IKON represents the new generation of boosting systems. Thanks to its advanced inverter technology, IKON delivers constant pressure using extremely low energy. While it keeps the traditional pump configuration, the ultra-compact design makes IKON the perfect fit for the most reduced spaces. The intuitive digital keypad allows for programming with quick easy steps. The Duplex system consists of two pumps, assembled on a steel base with a suction and discharge manifold. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by PD Water Systems, a trusted name in the industry.
Voltage: 115/230V
Motor: 1 HP, Single Phase
Maximum Head: 150' (65PSI)
Pumps: 2
Stages (per pump): 1
Suction: 1.25" x 1" THREADED
Discharge: 1.25" x 1" THREADED
Max Amp (per pump): 5.6/2.8
Length: 35"
Duty Cycle: Continuous
Multipurpose applications in the residential, agriculture and industrial markets. Perfect for pressure boosting application, irrigation and water transfer.
PERFORMANCE RANGE:
- Recommended range from 11 to 37 gpm.
- Head up to 150 ft. (65PSI)
APPLICATIONS:
- Irrigation, Residential
- Equipment & Water Systems
- Constant Pressure Systems
FEATURES:
• Compact design
• Self-priming
• Easy to install Plug & Play
• High efficiency motor
• Built-in variable frequency drive
• Built-in pressure tank in the pump body
• Built-in pressure sensor on the discharge side
• Check valve in the suction side
PUMPED LIQUID:
• Clear Water
PROTECTION:
• Dry-run protection
• Detects the presence of air in the pump casing
• Small leakages detection
• Overload protection
OPERATING CONDITIONS:
• Liquid temperature from 32 °F to 90 °F
• Ambient temperature up to 104 °F
• Maximum working pressure: 120 psi
• Continuous duty
MOTOR:
• 2 Pole induction motor
• Isolation Class F
• UL listed
