Goulds

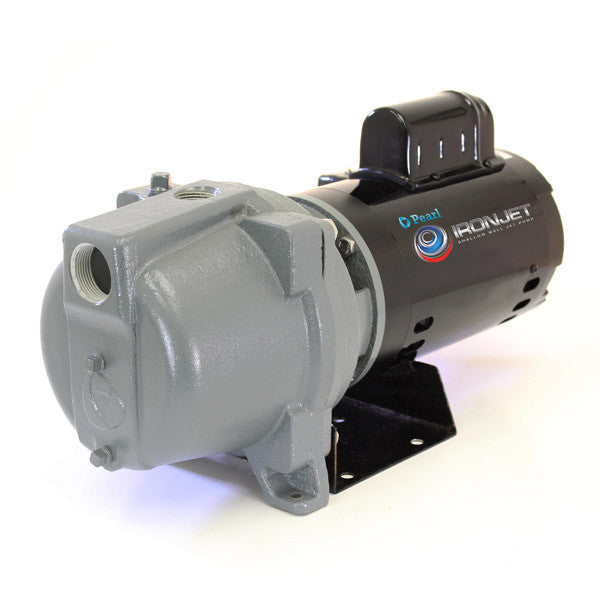

Pearl IRONJ-10F16P Shallow Well Self-Priming Jet Pump (1 HP, Single Phase, 115/230V)
Pearl IRONJ-10F16P Shallow Well Self-Priming Jet Pump (1 HP, Single Phase, 115/230V)
SKU:IRONJ-10F16P
Couldn't load pickup availability
The Pearl IRONJ-10F16P Shallow Well Self-Priming Jet Pump is specifically designed for boosting water for residential homes and cottages. This series is NSF Listed ensuring your safety. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Goulds Water Technology, a trusted name in the industry.
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1 HP, Single Phase
Ports: 1-1/4" NPT Suction x 1" NPT Discharge
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
IRONJET is a self-priming jet pump, after the first priming the pump will never need to prime again. The pump design and features guarantees complete customer satisfaction, such as:
- All components were carefully manufactured to assure the best performance and reliability.
- IRONJET’s construction is suitable for outdoor applications.
- IRONJET comes equipped with PEARL pressure switch for quick installation.
IRONJET WATER PUMP APPLICATIONS
- Supplying domestic water supply out of a well at desirable pressure
- Lifting water containing air or other gases
- Boost pressure from flooded suction applications
- For garden use
IRONJET WATER PUMP OPERATING CONDITIONS
- Liquid temperature: 32 °F to 150 °F
- Maximum working pressure: 125 PSI
- Continuous duty
IRONJET WATER PUMP CONSTRUCTION
- Closed coupled self-priming centrifugal pump
- High quality components for domestic water supply and irrigation in respect to low lead requirements
- Connections threaded ports NPT
- All hardware in Stainless Steel
- Pre-drilled priming port with plug
- Pre-drilled drain port with plug for maintenance
- U shape base on all models gives a complete full support to the pump
IRONJET WATER PUMP MOTOR
- Nema Standard ODP 56J motors for much cooler surface temperature
- Thermal overload protection
- Capacitor start, capacitor run type motor for the ½ - ¾ hp versions
- Permanent Split Capacitor (PSC) without centrifugal switch for the 1 - 1.5 hp versions
- NSK Bearings for a much longer life span
- All copper winding
- Class F Dupont Nomex Insulation System, cCSAus approved
- Single phase 0.5 - 0.75 - 1 - 1.5 hp, 115/230 V
- Easy voltage conversion
- Maximum ambient temperature admitted: 40 °C (104 °F)
IRONJET WATER PUMP Assembled With
- PEARL Pressure switch
