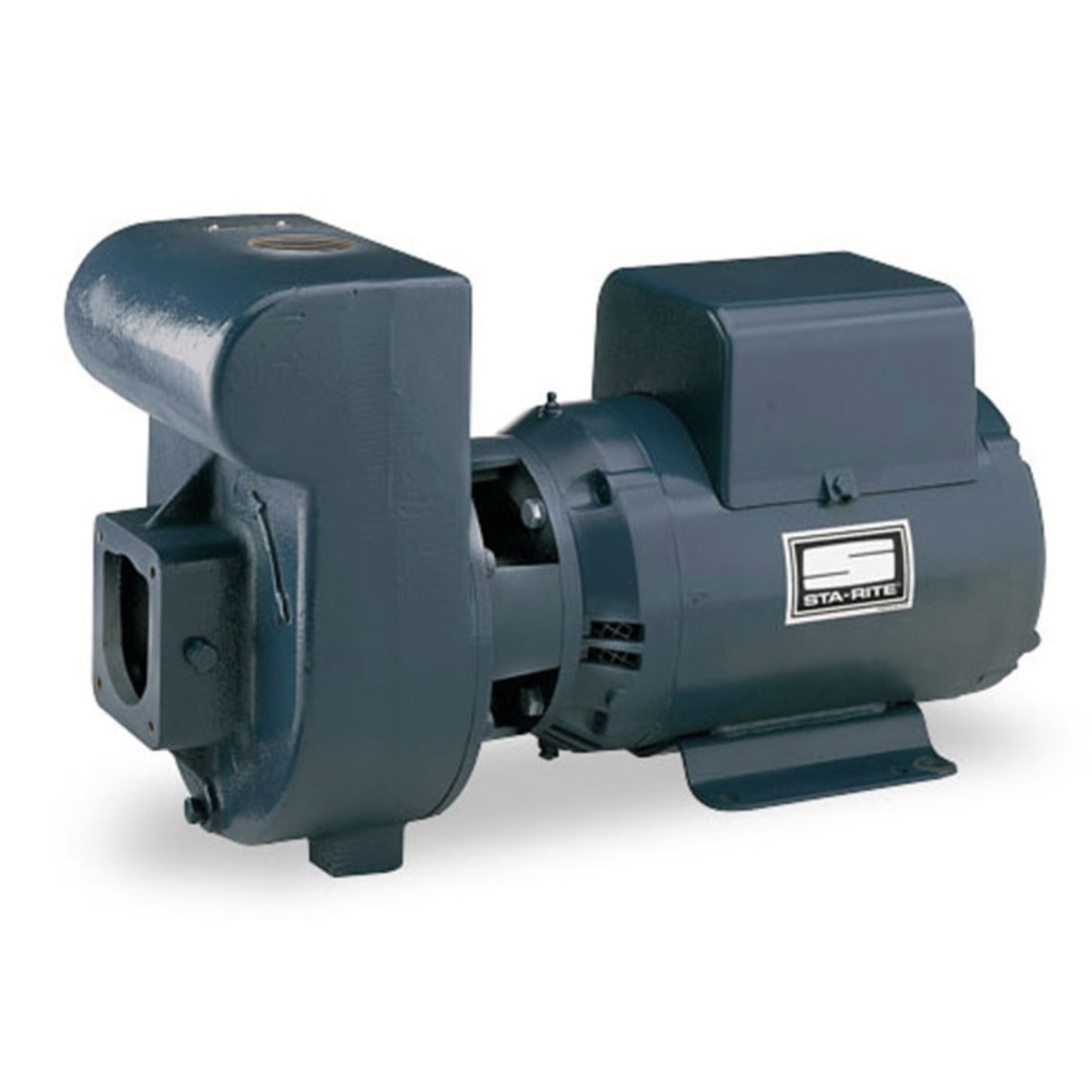

The Sta-Rite DHJ-170 5 HP D Series High Head Self-Priming Cast Iron Centrifugal Pump is one of the fastest priming pumps on the market. Commonly used for sprinkler systems, agricultural and industrial applications - commercial reliability at an affordable price. Leak-proof mechanical seal, easy service design and a heavy duty motor lessen overall maintenance and downtime. Designed and manufactured by Sta-Rite, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Pump Casing Material: Cast Iron
Impeller: Bronze
Voltage: 230V
Motor: 5 HP, Single Phase
Maximum Head: 138'
Maximum Flow: 162 GPM
Suction Flange Package 72 - 2-1/2" Required & Sold Separately - Contact Us for Specifications
SUCTION FLANGES (Order separately – required for suction tap sizes)
Duty Cycle: Continuous
Frequency: 60 Hz
D Series:
Some of the fastest priming pumps on the market. Available in high head or medium head series. Features mechanical seals, easy service design, heavy-duty motors, rugged construction. Available in 1-5 HP. Optional 6" and 8" Trap Packages are available
Specifications:
- Body and Base: Close-grained cast iron
- Impeller: Noryl® on 1 through 2-1/2 HP, bronze on 3 and 5 HP
- Diffuser: Cast iron
- Shaft: 1 through 2-1/2 HP: 416 stainless steel; 3 and 5 HP: Carbon steel inside removable shaft sleeve of stainless steel.
- Max Inlet Pressure: 20 PSI Max
- Discharge Pressure: 100 PSI
- Max Liquid Temperature: 60°C/140°F
- Max Ambient Air Temperature: 40°C/104°F
Features:
- 1 through 5 HP: Both high head and medium head models offer heavy-duty motors, easy service design, and air volume control tapping.
- Drain Port: Provided for easy winterizing.
- Medium Head Models: Deliver up to 115' of head with capacities to 159 GPM.
- High Head Models: Deliver up to 138' of head with capacities to 162 GPM.
- Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
- Heavy-Duty Motors: Designed for continuous operation. Capacitor start, will not cause electrical interference with TV or other appliances. Nationally known motors have ball bearing, stainless steel shaft. For single- and three-phase operation, 3450 RPM.
Applications:
Lawn sprinkling: Pumps can be safely operated by timer or other automatic device
Contractors: For dewatering excavation, jetting, water transfer and supply
Agriculture: Seed bed and plot irrigation, stock watering
Industrial: Sump drainage, fire protection, marine pumping, liquid transfer and supply operations
