Sta-Rite

Sta-Rite DSS4HG3T DSS Series PRO-Storm Multi-Stage High Head Centrifugal Pump (2 HP, Three Phase, 230/460V, TEFC)

Sta-Rite DSS4HG3T DSS Series PRO-Storm Multi-Stage High Head Centrifugal Pump (2 HP, Three Phase, 230/460V, TEFC)

Regular price $1,984.00 USD
Regular price $3,939.00 USD Sale price $1,984.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:DSS4HG3T

The Sta-Rite DSS4HG3T DSS Series PRO-Storm Multi-Stage High Head Centrifugal Pump is designed to be quiet, energy efficient along with being quick to prime. Designed and manufactured by Sta-Rite, a trusted name in the centrifugal pump and motor industry. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

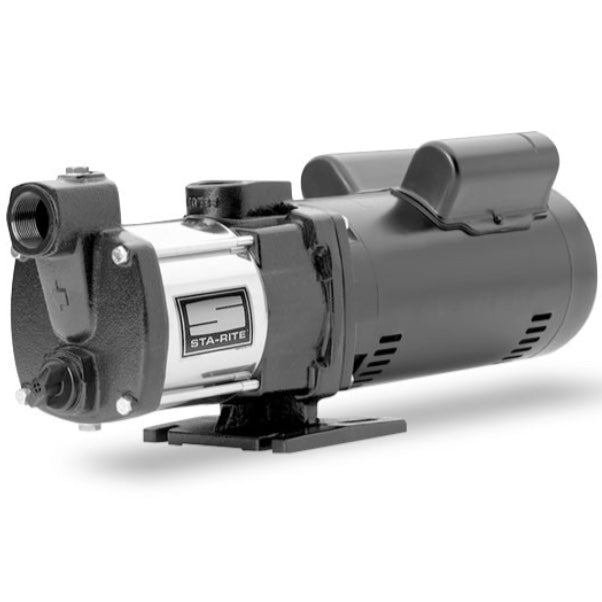

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product.

Pump Casing Material:  Cast Iron Discharge Pors w/ SS Outer Shell

Impeller:  Noryl

Voltage:  230/460V

Motor:  2 HP, Three Phase, TEFC

Stages:  4

Ports:  1-1/2" Suction x 1-1/4" Discharge

Speed:  3450 RPM

Maximum Inlet Pressure: 20 PSI

Maximum Discharge Pressure: 130 PSI

Maximum Operating Temperature: 120°F (49°C)

Maximum Suction Lift: 15 feet

The Pro-Storm™ multi-stage series of sprinkler pumps delivers high-performance without priming problems and delays. The Pro-Storm multi-stage series is designed for minimal electrical consumption and quiet operation from the professional-grade motor. The new Pro-Storm multi-stage series offers first-in-class priming capabilities of up to 15 foot lifts!

The DSS series centrifugal pumps are self-priming and are available in 3- or 4-stage versions, suitable for a variety of applications such as irrigation systems, fountains, washing systems, heating and cooling systems, and other water supply systems. Flows to 55 GPM, Heads to 240 feet.

Features:

  • Designed for minimal electrical consumption and quiet operation
  • Offers first-in-class priming capabilities
  • Up to 20' lifts
  • Up to 250' maximum head capability
  • Available in 230v 1-phase OR 230v/460v
  • 3-phase 3-phase models have TEFC motors

Specifications:

  • Motor Bracket and Integral Pump Base: Close-grained cast iron, 1-1/2" NPT inlet connection, stable heavy-duty design for rigid pipe and solid base mountings
  • Discharge: Close-grained cast iron, 1-1/4" NPT discharge connection, with easy-access drain port for end of season draining and winterization
  • Impellers and Diffusers: Noryl® precision-molded extra-smooth ports to maximize efficiency and performance
  • Outer Shell: Polished 304 stainless steel
  • Shaft: 303 stainless steel
  • Priming Valve: Special brass priming valve for trouble-free operation during the initial pump priming
  • Mechanical Seal: High-pressure seal, carbon-ceramic seal faces, Buna-N elastomers
  • Heavy-Duty Motor: 2 HP, single-phase, 3450 RPM, 230-volt, high-service factor, capacitor-start/capacitor-run, open dripproof motor, rated for continuous-duty operation. 230/460 TEFC available

Applications:

  • Residential and commercial turf irrigation
  • Residential water systems
  • Shower and washing systems
  • Water transfer
  • Heating and air conditioning systems
  • Water features and fountains
