Sta-Rite HMSF-1FL Horizontal Multi-Stage Cast Iron Convertible Deep Well Jet Centrifugal Pump (1-1/2 HP, Single Phase, 115/230V)

Sta-Rite HMSF-1FL Horizontal Multi-Stage Cast Iron Convertible Deep Well Jet Centrifugal Pump (1-1/2 HP, Single Phase, 115/230V)

Regular price $1,755.00 USD
Regular price $3,857.00 USD Sale price $1,755.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HMSF-1FL

Sta-Rite HMSF-1FL Horizontal Multi-Stage Cast Iron Convertible Deep Well Jet Centrifugal Pumps feature built-in regulators for easy priming and increased performance. Separate jet package required if you are not reusing from an existing pump. Berkeley tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Berkeley, a trusted name in the industry.

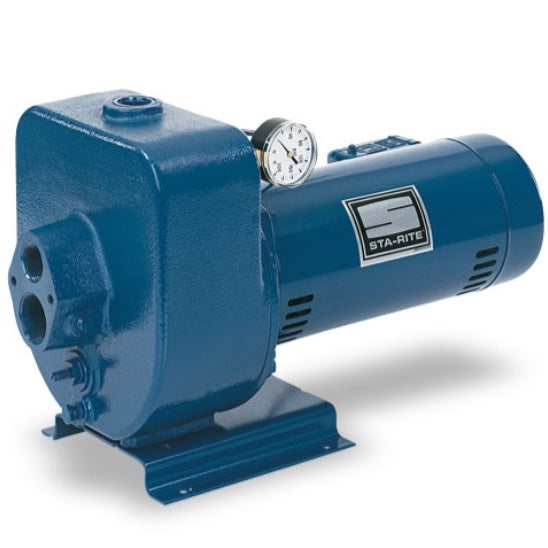

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product. PKG 107 required for all new installations.

Pump Casing Material:  Cast Iron

Impeller:  Polycarbonate

Voltage:  115/230V

Motor:  1-1/2 HP, Single Phase

Ports:  1-1/4" x 1" x 1"

Duty Cycle:  Continuous

Frequency:  60 Hz

LT2 Series Multi-Stage Jet Pumps are the highest performing pumps available in its category. The LT2 Series Convertible Jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4" Double Pipe, 2" and 3" Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft.) to provide a wide range of high pressure applications.



  • Automatic Pressure Regulator - Faster-acting and quieter design eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
  • Quality Construction - Close-grained cast iron pump body is a rugged, one-piece unit. Specially treated to resist corrosion. Drain port provided for easy winterization.
  • Precision Machined Diffusers - for faster priming
  • Mechanical Shaft Seal - Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection
  • Polycarbonate Impellers - Precision molded for perfect balance, and ultra-smooth for highest performance and efficiency
  • Motor Windings - Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life
  • Dustproof Cover - All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure
  • Balanced Rotor - Rotor is die cast under high pressures for uniform performance and greater efficiency, dynamically balanced
  • Heavy-Duty Ball Bearings - Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth quiet operation
  • Pump and Motor Shaft - One piece threaded shaft for positive impeller drive and alignment. Shaft is stainless steel for maximum corrosion resistance

Specifications:

  • Body: One-piece rugged cast iron
  • Pump and Motor Shaft: 416 stainless steel
  • Impeller: Polycarbonate
  • Diffuser: Corrosion-resistant cast iron
  • Pressure Switch Pre-Set: 30–50 PSI
  • Suction Ports: Drive-over-Suction
