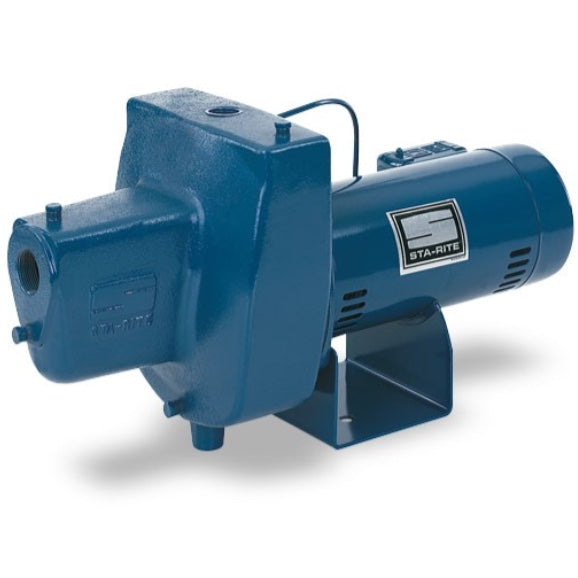

Sta-Rite HND-L Cast Iron Shallow Well Jet Pump (3/4 HP, Single Phase, 115/230V)
Sta-Rite HND-L Cast Iron Shallow Well Jet Pump (3/4 HP, Single Phase, 115/230V)
SKU:HND-L
Couldn't load pickup availability
The Sta-Rite HND-L Cast Iron Shallow Well Jet Pump is for use on farms and in residential homes and cottages. This pump is suitable for wells up to 25' deep. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Pentair Sta-Rite, a trusted name in the industry.
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 3/4 HP, Single Phase
Impeller Material: Noryl®
Ports: 1-1/4" NPT Suction x 1" NPT Discharge
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
The Projet HN models are constructed with quality components and provide excellent performance for wells to 25' deep
Features:
- Quality Construction - Close-grained cast iron body.Drain port provided for easy winterizing
- Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
- Motor Windings - Superior insulation materials protect against excessive moisture and contaminants and assure prolonged motor life.
- Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.
- Max. Liquid Temperature: 140°F Max.
- Inlet Pressure: 50 PSI
- Average Priming Time (in minutes) at 15 Feet: HNC = 1.7; HND = 1.1; HNE = 1.3
- Average Priming Time (in minutes) at 25 Feet: HNC = 4.4; HND = 4.4; HNE = 2.6
- Body: Close-grained cast iron
- Nozzle: High-strength Lexan®
- Venturi: Lexan®
- Impeller: Noryl®
- Diffuser: Reinforced polypropylene
- Shaft: One-piece threaded, 416 grade stainless steel
- Base: Steel, 12 gauge
Features:
- Quality Construction: Close-grained cast iron body. Drain port provided for easy winterizing.
- Built-in Jet: High-strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service.
- Noryl Impeller: Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
- Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
- Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication.
- Motor Windings: Superior insulation materials protect against excessive moisture and contaminants…assure prolonged motor life.
- Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced.
- Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
- Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
- Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components.
- Pressure Switch: Professional quality, allows cut-in adjustments.
