Sta-Rite MSE Cast Iron Vertical Multi-Stage Deep Well Jet Pump (1 HP, Single Phase, 115/230V)
Sta-Rite MSE Cast Iron Vertical Multi-Stage Deep Well Jet Pump (1 HP, Single Phase, 115/230V)
SKU:MSE
Couldn't load pickup availability

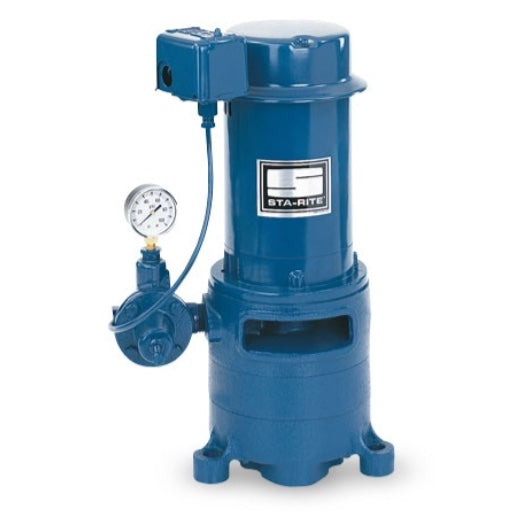

The Sta-Rite MSE Cast Iron Vertical Multi-Stage Deep Well Jet Pumps include a pre-plumbed regulator, pressure gauge and pressure switch. Separate jet package and casing adapters available if you are not reusing from an existing pump. Each pump is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Pentair Sta-Rite, a trusted name in the industry.
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1 HP, Single Phase
Impeller Material: Noryl®
Ports: 1-1/4" NPT Suction x 1" NPT Discharge x 1-1/4" Drive
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
- Quality Construction - Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion.
- Automatic Pressure Regulator - Faster-acting and quieter, design eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
- Motor Windings - Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
- Dustproof Cover - All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.
The MS Series Vertical Jet Pumps are the industry standard deep well jet pumps for over-the-well “bolt-on” installations. The MS Series Jet Pumps include the pre-plumbed external automatic regulator, pressure gauge and a pressure switch. A complete line of casing adapters to drive the 4” double pipe or 2” and 3” single pipe jet packages can be purchased separately
Specifications:
- Body: Rugged cast iron
- Pump and Motor Shaft: 416 stainless steel
- Impellers: Noryl®
- Diffuser: Close-grained cast iron
Features:
- Automatic Pressure Regulator: Faster-acting and quieter, design eliminates “hunting” for correct drive pressure. New, improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
- Quality Construction: Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion.
- Noryl Impellers: Precision-molded for perfect balance, and ultra-smooth for highest performance and efficiency.
- Pressure Switch: High quality. Differential and cut-in/cut-out pressure settings are adjustable.
- Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
- Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
- Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.
- Balanced Rotor: Rotor is diecast under high pressures for uniform performance and greater efficiency...dynamically balanced.
- Heavy-Duty Ball Bearings: Permanently lubricated sealed bearings are extensively tested to ensure extended life and smooth, quiet operation.
- Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
