Sta-Rite PNC-10 PN Series Thermoplastic Shallow Well Jet Pump (1/2 HP, Single Phase, 115/230V)
Sta-Rite PNC-10 PN Series Thermoplastic Shallow Well Jet Pump (1/2 HP, Single Phase, 115/230V)
SKU:PNC-10
Couldn't load pickup availability

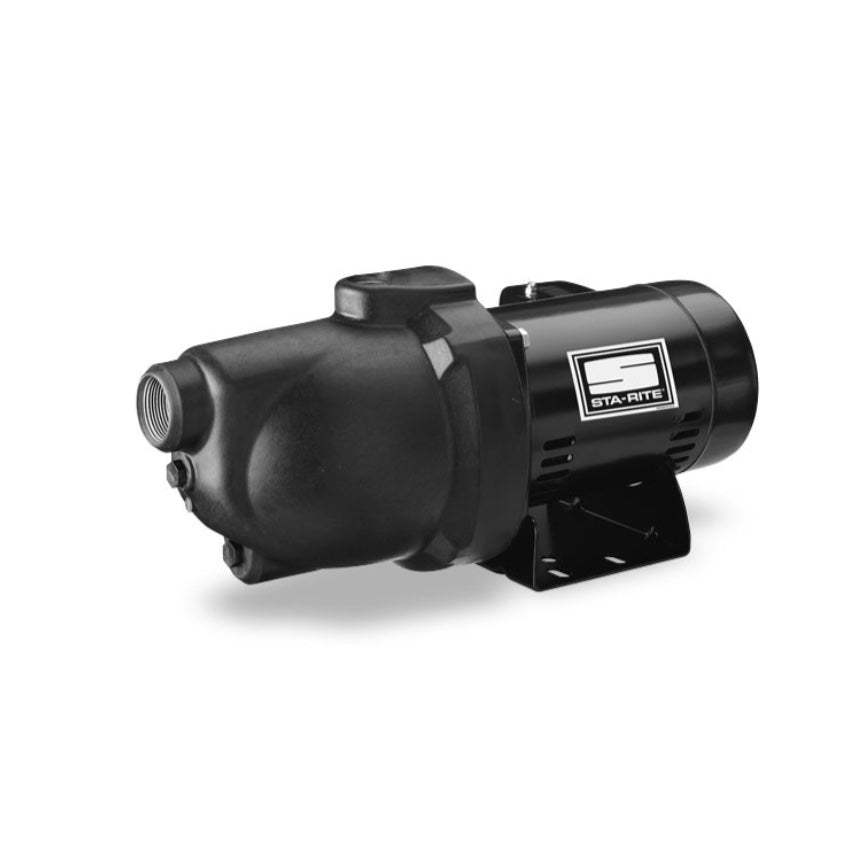

The Sta-Rite PNC-10 PN Series Thermoplastic Shallow Well Jet Pump's thermoplastic casing ensures superior corrosion resistance to avoid a shutdown in supplying water for your house, farm or commercial and industrial needs. Pentair Sta-Rite tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Sta-Rite, a trusted name in the industry.
Pump Casing Material: Fiberglass-reinforced Thermoplastic
Voltage: 115/230V
Motor: 1/2 HP, Single Phase
Impeller: Engineered Polymer
Base: 12-Gauge Steel
Nozzle, Venturi, Diffuser: Polypropylene
Ports: 1-1/4" NPT Suction x 1" NPT Discharge
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Speed: 3500 rpm
Frequency: 60 Hz
The PN Series pumps are corrosion and abrasion-resistant and are ideal for wells with pumping levels of 25' or less.
- Quality Construction: Fiberglass-reinforced thermoplastic body provides total corrosion resistance and high resistance to abrasion.
- Built-in Jet: Shallow-well jet has corrosion-resistant polypropylene nozzle and venturi.
- Impeller: Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
- Precision-Molded Diffuser: Polypropylene diffuser allows pump to prime faster, handle more air.
- Heavy-Duty Motor: Stainless steel shaft and dual heavy-duty ball bearings.
- Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
- Dual Voltage Capability: Dual voltage motors are shipped at the 230-volt setting. Professional Quality, Pre-set 30-50 PSI: Allows for cut-in pressure adjustments.
- New Nozzle Cleanout: Easy plug removal and access for ease of service.
- New Drain Plug: Bottom-mounted for easy draining and winterization.
