WEG 00336OS1B182JM-S Electric Motor - Rolled Steel (3 HP, Single Phase, 115/208-230V, 3600 RPM, 60 Hz, 182/4JM, IC01, ODP, Foot-Mounted)
WEG 00336OS1B182JM-S Electric Motor - Rolled Steel (3 HP, Single Phase, 115/208-230V, 3600 RPM, 60 Hz, 182/4JM, IC01, ODP, Foot-Mounted)
Regular price
$869.00 USD
Regular price
$2,110.00 USD
Sale price
$869.00 USD
Shipping calculated at checkout.
SKU:00336OS1B182JM-S
Quantity
Couldn't load pickup availability
The WEG 00336OS1B182JM-S Electric Motor is a powerful 3 HP motor proven to be reliable for pump applications. Designed and manufactured by WEG, a trusted name in the industry that surpasses NEMA standards consistently. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

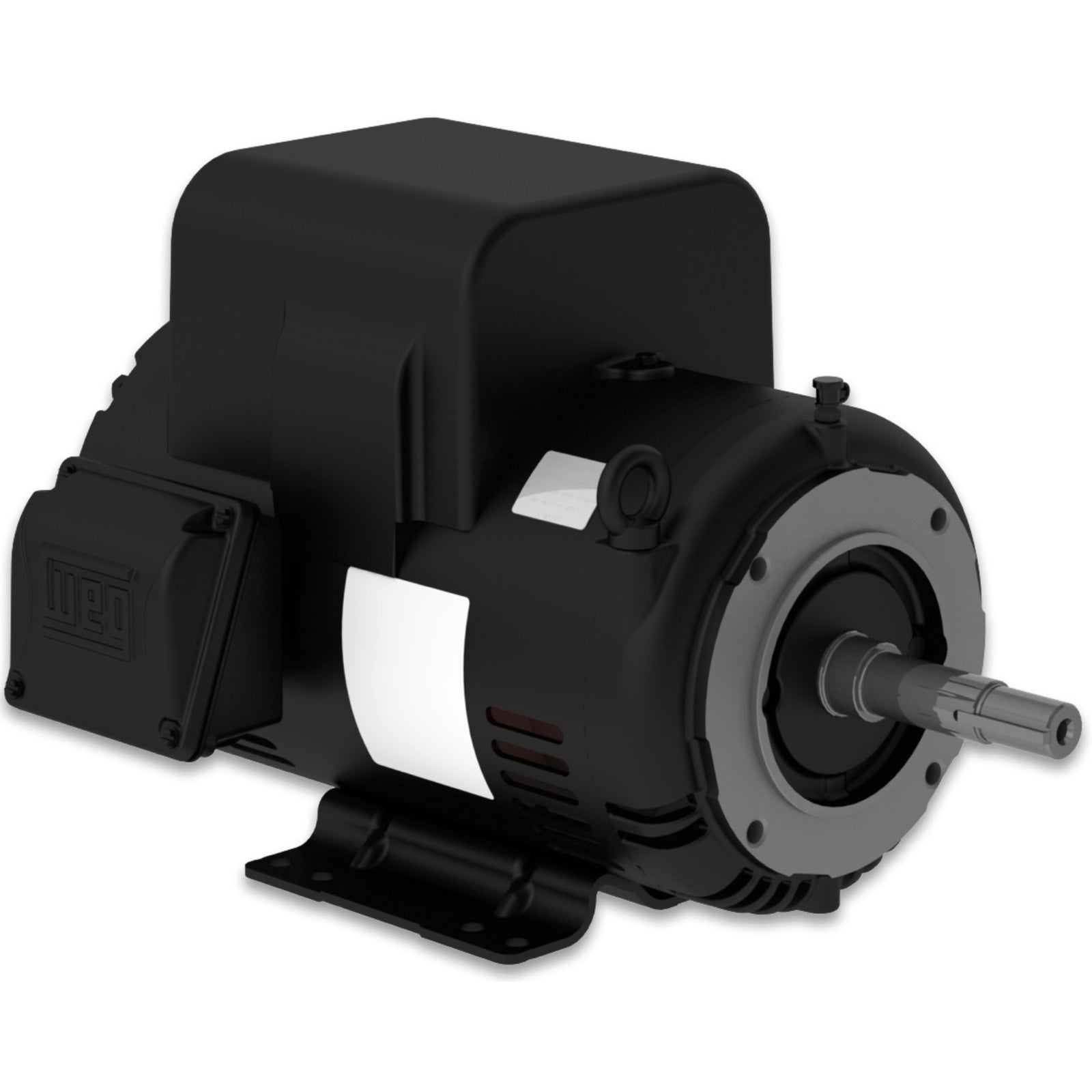

**Picture is stock photo and may not match exactly**
Specifications:
Catalog Number: 00336OS1B182JM-S
Voltage: 115/208-230
Enclosure: ODP
HP: 3
Frame: 182/4JM
Frame Material: Rolled Steel
Frequency: 60 Hz
Single Phase
Speed: 3600 RPM
Motor Standards: NEMA
Electric Motors
| Frame | 182/4JM |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 115/208-230 V |
| Rated current | 25.8/13.8-12.9 A |
| L. R. Amperes | 173/92.5-86.4 A |
| LRC | 6.7x(Code H) |
| No load current | 10.5/3.90-5.20 A |
| Rated torque | 4.49 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 260 % |
| Locked rotor time | 19s (cold) 11s (hot) |
|---|---|
| Moment of inertia (J) | 13.0 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Starting Method | Direct On Line |
| Duty Cycle | Cont.(S1) |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 75.0 lb |
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Fan material | Without fan |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | Without Bearing Seal |
| DE bearing Seal | Without Bearing Seal |
