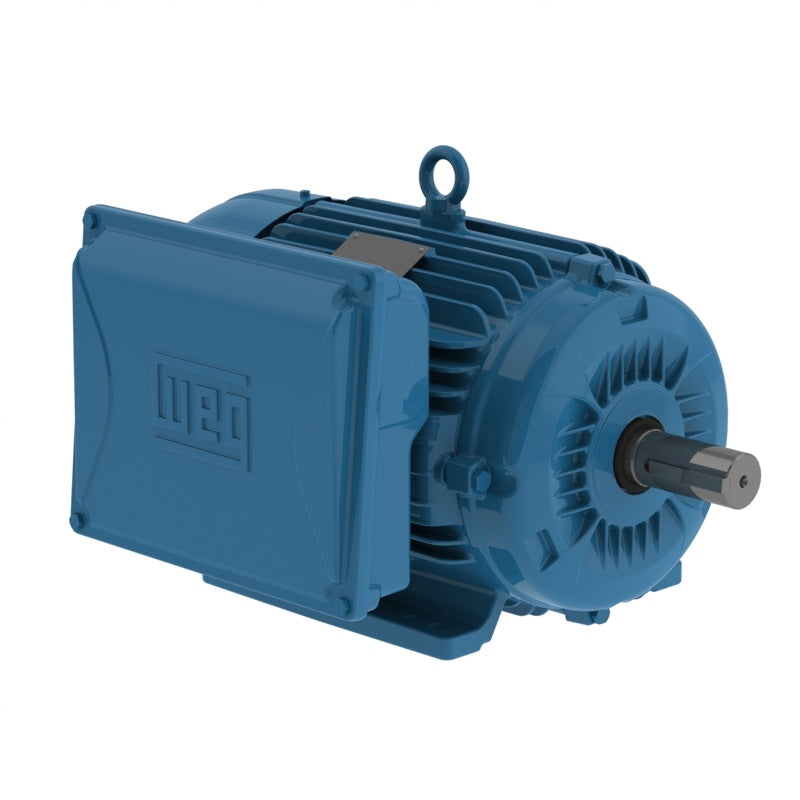

WEG 01018ES1E215T-W22 Electric Motor (10 HP, Single Phase, 208-230/460V, 1800 RPM, 60 Hz, 213/5T, IC411, TEFC, Foot-Mounted)
WEG 01018ES1E215T-W22 Electric Motor (10 HP, Single Phase, 208-230/460V, 1800 RPM, 60 Hz, 213/5T, IC411, TEFC, Foot-Mounted)
Regular price
$1,404.00 USD
Regular price
$1,579.00 USD
Sale price
$1,404.00 USD
Shipping calculated at checkout.
SKU:01018ES1E215T-W22
Quantity
Couldn't load pickup availability
The WEG 01018ES1E215T-W22 Electric Motor is a powerful 10 HP high RPM motor proven to be reliable for general purpose applications. Designed and manufactured by WEG, a trusted name in the industry that surpasses NEMA standards consistently. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Specifications:
Catalog Number: 01018ES1E215T-W22
Voltage: 208-230/460
Enclosure: TEFC
HP: 10
Frame: 213/5T
Frame Material: Cast Iron
Frequency: 60 Hz
Single Phase
Speed: 1800 RPM
Motor Standards: NEMA
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1740 rpm |
| Slip | 3.33 % |
| Rated voltage | 208-230/460 V |
| Rated current | 44.5-40.8/20.4 A |
| L. R. Amperes | 298-273/137 A |
| LRC | 6.7x(Code G) |
| No load current | 8.97-10.4/5.20 A |
| Rated torque | 30.2 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 240 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.15 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 192 lb |
Features:
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V'Ring |
| DE bearing Seal | V'Ring |
