WEG 01518ET3E254T-W22S Electric Motor (15 HP, Three Phase, 208/460//380V, 1800 RPM, 60//50 Hz, 254T, IC411, TEFC, Foot-Mounted)
WEG 01518ET3E254T-W22S Electric Motor (15 HP, Three Phase, 208/460//380V, 1800 RPM, 60//50 Hz, 254T, IC411, TEFC, Foot-Mounted)
Regular price
$1,624.00 USD
Regular price
$3,802.00 USD
Sale price
$1,624.00 USD
Shipping calculated at checkout.
SKU:01518ET3E254T-W22S
Quantity
Couldn't load pickup availability
The WEG 01518ET3E254T-W22S Electric Motor is a NEMA Premium Efficiency 15 HP motor proven to be reliable for general purpose applications and widely utilized in the car wash industry. Designed and manufactured by WEG, a trusted name in the industry that surpasses NEMA standards consistently. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

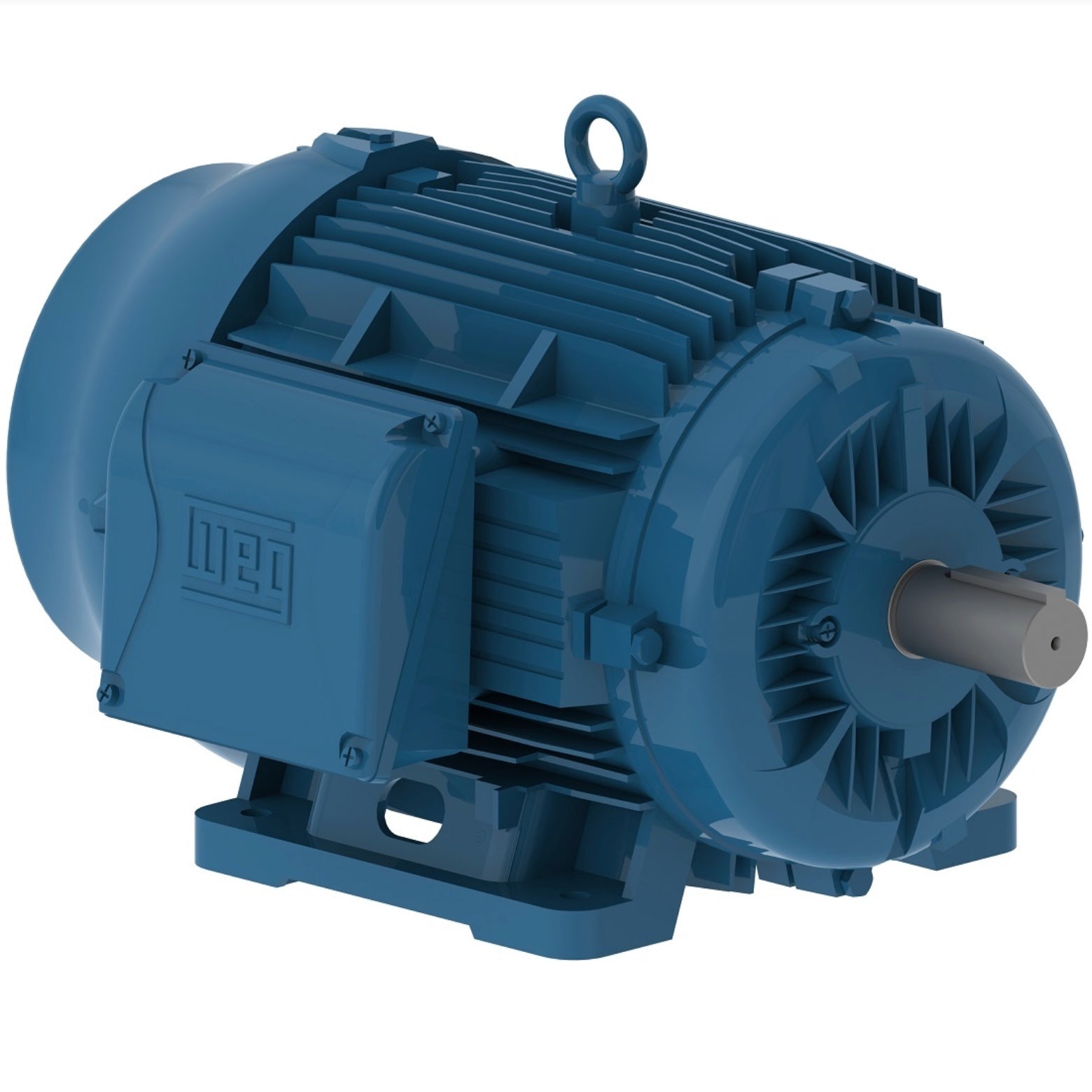

**Picture is stock photo and may not match exactly**
Specifications:
Catalog Number: 01518ET3E254T-W22S
Voltage: 230/460//380
Enclosure: TEFC
HP: 15
Frame: 254T
Frame Material: Cast Iron
Frequency: 60//50 Hz
Three Phase
Speed: 1800 RPM
Motor Standards: NEMA
Electric Motors
| Frame | 254T |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1770 rpm |
| Slip | 1.67 % |
| Rated voltage | 230/460 V |
| Rated current | 36.0/18.0 A |
| L. R. Amperes | 230/115 A |
| LRC | 6.4x(Code G) |
| No load current | 14.6/7.30 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 250 % |
| Locked rotor time | 37s (cold) 21s (hot) |
| Moment of inertia (J) | 2.62 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Starting Method | Direct On Line |
| Duty Cycle | Cont.(S1) |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 274 lb |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C3) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V'Ring |
| DE bearing Seal | V'Ring |
