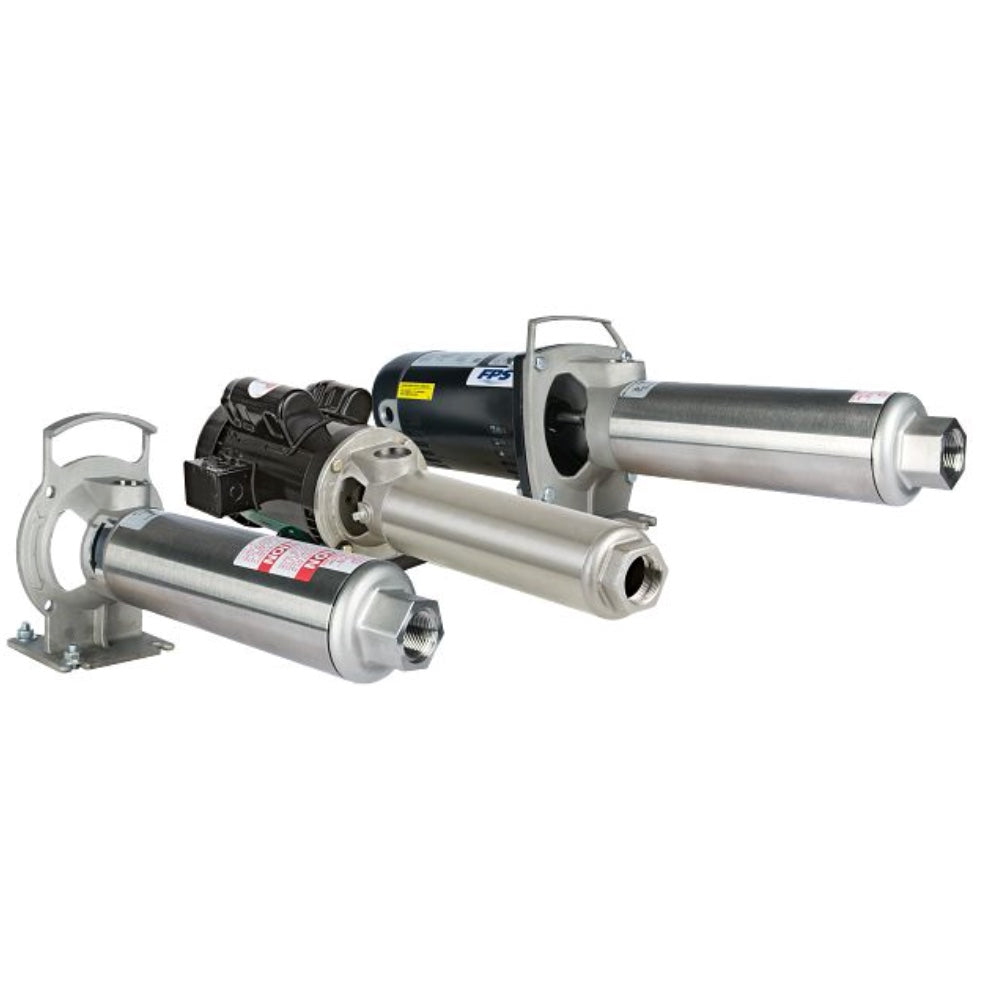

Franklin Electric is proudly headquartered in Fort Wayne, Indiana and prides itself on manufacturing their majority of their products in the USA. Dade Pump & Supply DBA De Ruiter Electric Motor is an authorized distributor and repair center for Franklin Electric Pumps and Motors. Since 1960 we have been fortunate to be able to choose the vendors we work with to ensure customer satisfaction and minimize downtime. The BT4 Series of Horizontal Multi-Stage Pumps is one of the most common booster pumps sold and serviced at Dade Pump. Available options include single phase or three phase motors and flow rates from 5 to 45 gpm.
The BT4 horizontal booster pumps are considered low to medium flow and high pressure. This series of Franklin Electric pumps are used as a high pressure pump to help boost water pressure from city mains or private systems. When more pressure than flow is needed - this is your pump of choice. There are many variations available to fit your particular needs. For assistance in selecting the correct pump and motor please reach out to a Dade Pump representative today. We are here to Help!
Common BT4 Series Pumps on DadePump.com:
Franklin Electric 95831515 Model 15FBT07S4 BT4 Series Stainless Steel Multi-Stage Booster Pump (3/4 HP, Single Phase, 115/230V, ODP, 15 GPM) - Click Here to See Full Specifications on DadePump.com
Franklin Electric 95832530 Model 25FBT2S4 BT4 Series Stainless Steel Multi-Stage Booster Pump (2 HP, Single Phase, 115/230V, ODP, 25 GPM) - Click Here to See Full Specifications on DadePump.com
Franklin Electric 95831025 Model 10FBT15S4 BT4 Series Stainless Steel Multi-Stage Booster Pump (1.5 HP, Single Phase, 115/230V, ODP, 10 GPM) - Click Here to See Full Specifications on DadePump.com
Features from the Franklin Electric Website:
5-25 GPM BT4 Series
- Stainless steel discharge on all models with 1" NPT outlet
- Stainless steel bracket; with a rugged support foot for horizontal or vertical mounting, a
handle for portability and with 1" NPT inlet - Built with Franklin’s patented (U.S. patent) 7,290,984 Tri-Seal floating stage system,
providing maximum efficiency, longevity, and performance - Acetal impellers, Modified PPO diffusers, and 300-series stainless steel hub, eye seals,
shaft, and shell - Mechanical seal with carbon/ceramic faces, FKM elastomers, and stainless steel components
- Industry-proven ODP square-flange 2-compartment motors are easily serviced or replaced
without either dismantling the pump end or disturbing the plumbing connections - High service factor, ½-3 hp, 2-compartment dual-voltage motors; three-phase inverter
duty rated - Maximum inlet pressure: 75 PSI
- Maximum discharge pressure: 400 PSI
- Maximum fluid handling temperature: 120 °F (49 °C)
- NSF/ANSI/CAN 372 Certified
35-45 GPM BT4 Series
- Designed for boosting water pressure from a variety of sources including municipal and private water systems
- Enhanced hydraulics for 35 & 45 GPM nominal ratings to deliver more efficient pressure boosting
- Robust stainless steel bracket, shell & discharge provide optimum corrosion protection
- Equipped with 1.5" NPT connections at inlet and outlet minimize system friction loss
- Versatile bracket can be rotated in 90° increments for simplified, compact plumbing arrangements
- Multiple bracket drain & pressure tappings enable draining in any position and provide for bypass and accessory plumbing
- Back pull-out design enables motor removal for servicing without disturbing either the pump or plumbing
- NEMA standard 56C keyed shaft motors are readily available in ODP, TEFC enclosures; 1 & 3-phase for common voltages
- Carbon-ceramic-FKM mechanical seal is capable of handling a variety of fluids
- Maximum inlet pressure: 75 PSI
- Maximum discharge pressure: 400 PSI
- Maximum fluid handling temperature: 120 °F (49 °C)
BT4 Series 56C Pump Ends
- All BT4 pump sizes are available to order as pump ends only
- Utilizes any customer-supplied NEMA 56C keyed shaft motor
